Battenfeld BA 600 / 200 CDC
| Details |
| Manufacturer: | Battenfeld |
| Type of machine: | BA 600 / 200 CDC |
| Year: | 1999 |
| Delivery time: | Now |
| Terms of Delivery: | Ex Works |
| Location: | Awans - Belgium |
| Controlversion: | Unilog 4000 |
| Screen text: | Dutch |
| Operating Hours | 55465 Hrs. |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 600 kN |
| Size of mould platens (h x v): | 490 mm x 490 mm |
| Distance between tie bars (h x v): | 320 mm x 320 mm |
| Mould opening stroke: | 425 mm |
| Mould height min.: | 150 mm |
| Mould height max.: | - mm |
| Max daylight: | 475 mm |
| Hydraulic ejector - stroke: | 150 mm |
| Ejector force forward/backward: | 27,5 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 35 mm |
| Ls/D ratio: | 18 |
| Injection pressure: | 1485 bar |
| Stroke volume: | 134,7 ccm |
| Shot weight, PS: | 122,5 g |
| Injection stroke: | 140 mm |
| Screw speed: | 228 1/min |
| Plasticising rate max.: | 15 g/s |
| Nozzle pressure: | 57,7 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Installed heating capacity: | 7,88 kW |
| Adjustable barrel heating zones: | 1+3 |
| Pump power | 11 Kw |
| Oil | 170 L |
|
|
|
|---|---|
| Dimensions und weights | |
| Total machine weight: | 3.000 kg |
| Dimensions ( L x B x H ) | 3,95 x 1,50 x 2,10 m |
| Accessories | |
|---|---|
| - 1 x Core - Robot Interface - Anti vibration pads - |
| Additional information | |
|---|---|
| - - 4-fold Waterbattery |

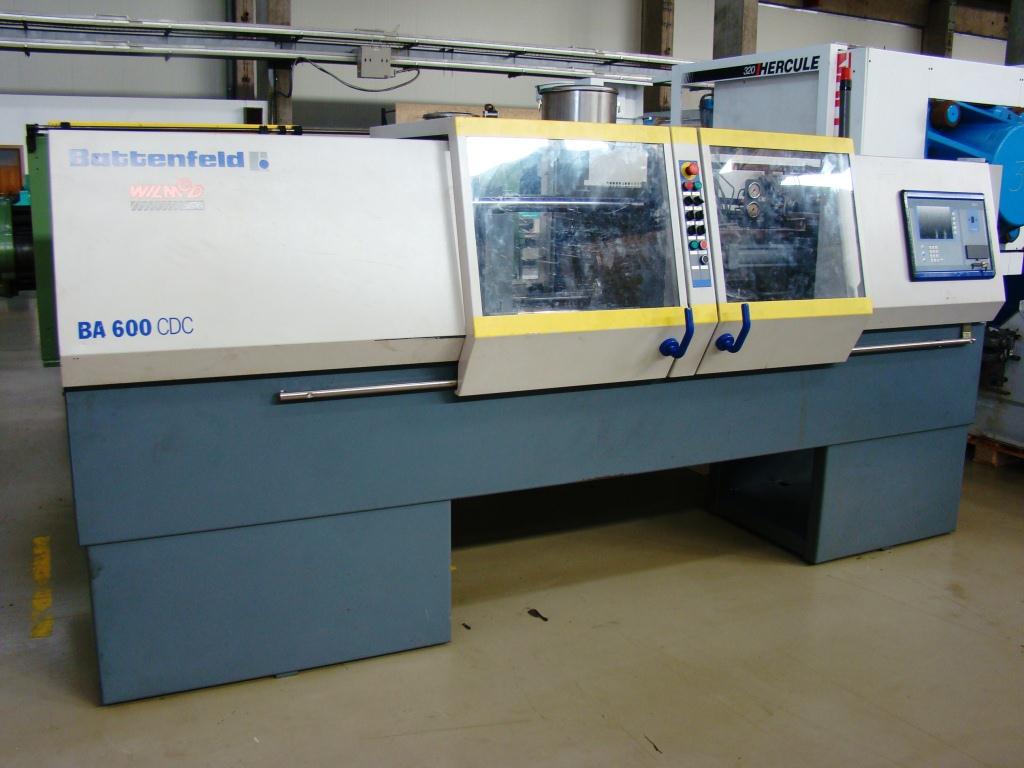

| Picture |
|---|
