Battenfeld BA 500 / 125 CD Plus
| Details |
| Manufacturer: | Battenfeld |
| Type of machine: | BA 500 / 125 CD Plus |
| Year: | 1990 |
| Delivery time: | Immediately |
| Terms of Delivery: | Ex Works |
| Location: | Awans - Belgium |
| Controlversion: | Unilog 2040 |
| Screen text: | --- |
| Operating Hours | Hrs. |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 500 kN |
| Size of mould platens (h x v): | 480 mm x 480 mm |
| Distance between tie bars (h x v): | 304 mm x 304 mm |
| Mould opening stroke: | 375 mm |
| Mould height min.: | 150 mm |
| Mould height max.: | mm |
| Max daylight: | 525 mm |
| Hydraulic ejector - stroke: | 160 mm |
| Ejector force forward/backward: | 17,5 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 30 mm |
| Ls/D ratio: | 18 |
| Injection pressure: | 1492 bar |
| Stroke volume: | 84,8 ccm |
| Shot weight, PS: | 77,1 g |
| Injection stroke: | 120 mm |
| Screw speed: | 0---335 1/min |
| Plasticising rate max.: | 12,5 g/s |
| Nozzle pressure: | 57,7 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Installed heating capacity: | 6,78 kW |
| Adjustable barrel heating zones: | 1+3 |
| Pump power | 11 Kw |
| Oil | 185 L |
|
|
|
|---|---|
| Dimensions und weights | |
| Total machine weight: | 3.200 kg |
| Dimensions ( L x B x H ) | 3,23 x 1,30 x 1,80 m |
| Accessories | |
|---|---|
| - 1 x Core - |
| Additional information | |
|---|---|
| - 4-fold Waterbattery |

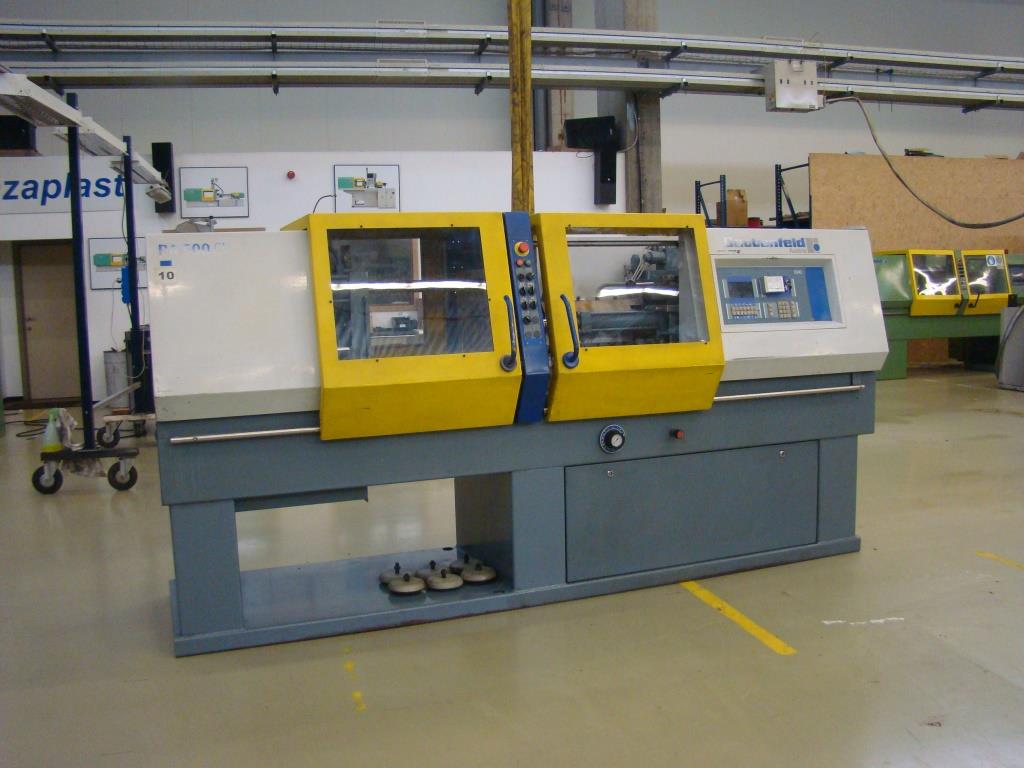

| Picture |
|---|
