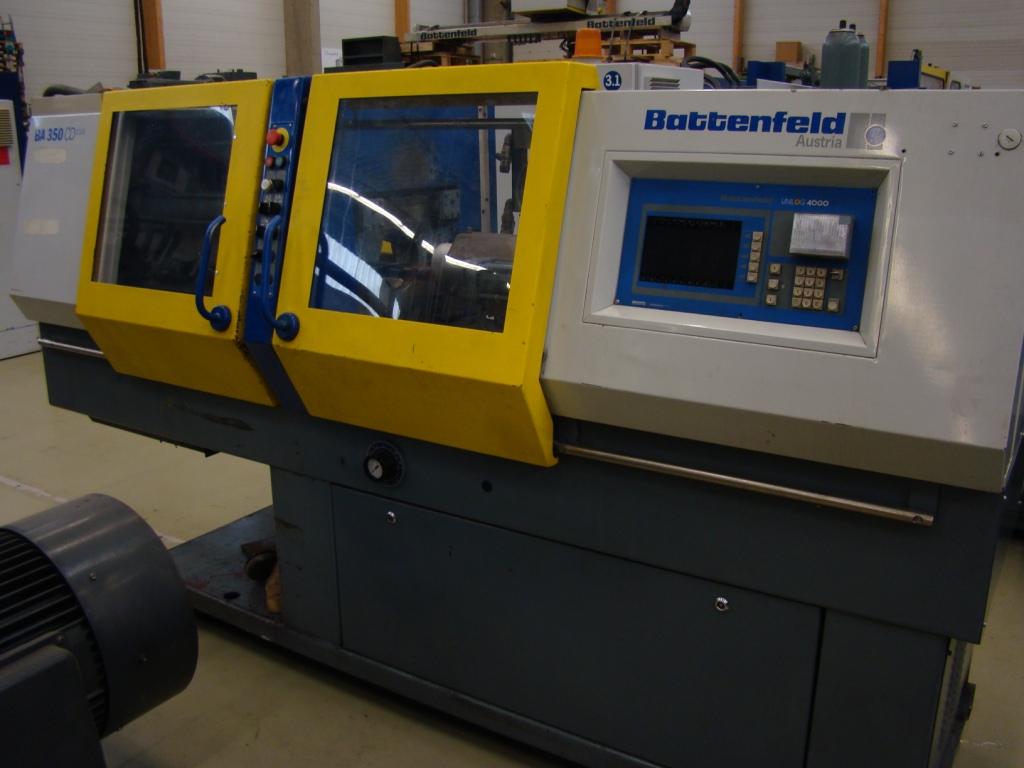

Battenfeld BA 350 CD Plus
| Manufacturer: |
Battenfeld |
| Type of machine: |
BA 350 CD Plus |
| Year: |
1991 |
| Delivery time: |
Immediately |
| Terms of Delivery: |
EX - Works |
| Location: |
Awans - Belgium |

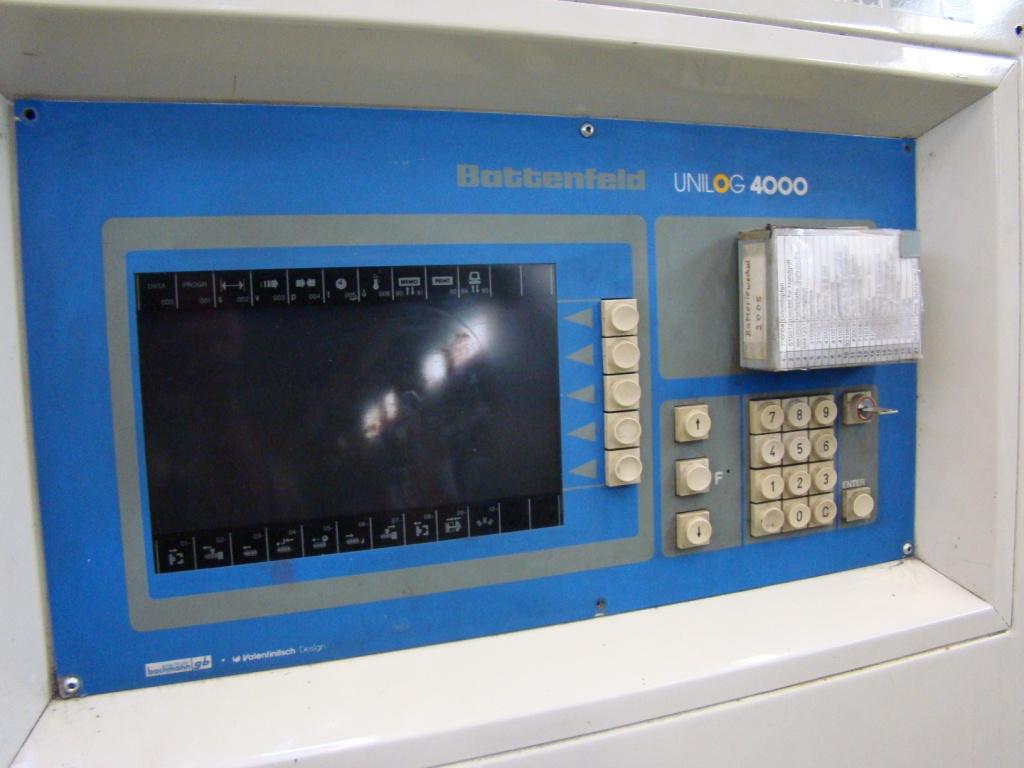

| Controlversion: |
Unilog 4000 B |
| Screen text: |
German |
| Operating hours: |
38193 Hrs |
| Price: |
On Request |
Technical details
| Clamping unit |
| Clamping force: |
350 kN |
| Size of mould platens (h x v): |
mm x mm |
| Distance between tie bars (h x v): |
304 mm x 304 mm |
| Mould opening stroke: |
325 mm |
| Mould height min.: |
150 mm |
| Mould height max.: |
mm |
| Max daylight: |
475 mm |
| Hydraulic ejector - stroke: |
100 mm |
| Ejector force forward/backward: |
kN |
| Injection unit |
| Screw diameter: |
25 mm |
| Injection pressure: |
2.150 bar |
| Stroke volume: |
60 ccm |
| Shot weight, PS: |
54 g |
| Electric and Hydraulic Equipment |
| Nominal capacity of pump motor: |
kW |
| Installed heating capacity: |
kW |
| Adjustable barrel heating zones: |
|
| Dry cycle time: |
sec |
| Reservoir capacity: |
ltr. |
|
| Dimensions und weights |
| Dimensions of the machine ca.: |
m x m x m |
| Total machine weight: |
2.200 kg |
| Accessories |
| |
| |
| |
| 2 x Airvalve |
| Wedge type anti-vibration pads |
