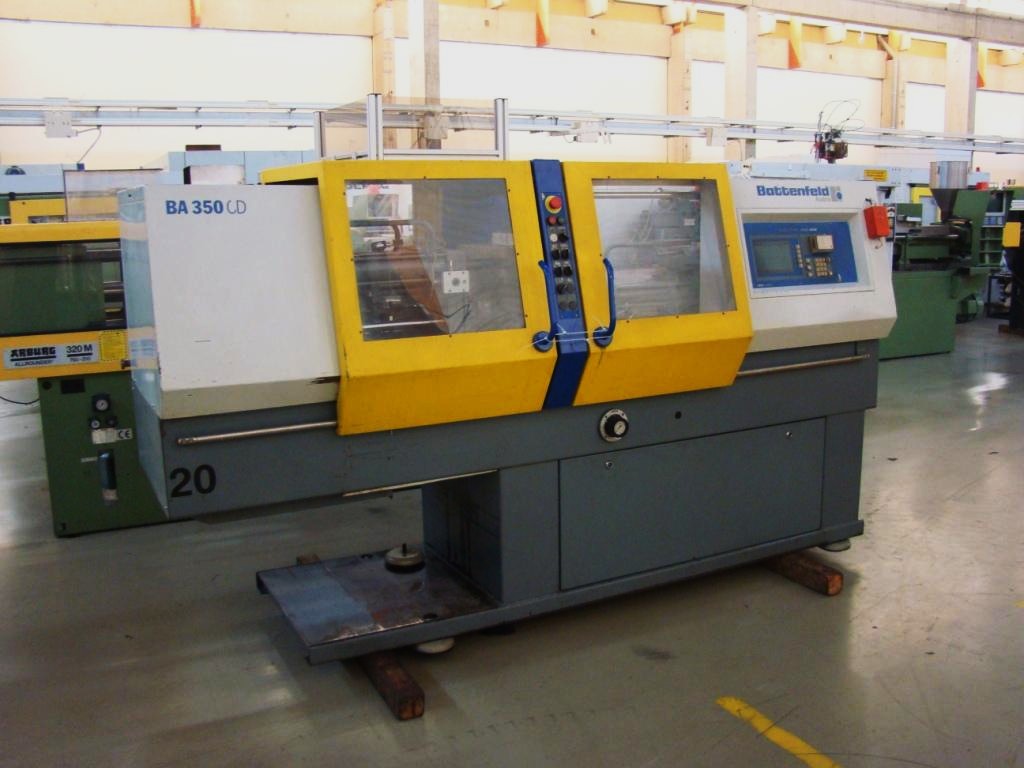

Battenfeld BA 350 / 125 CD
| Details |
| Manufacturer: | Battenfeld |
| Type of machine: | BA 350 / 125 CD |
| Year: | 1989 |
| Delivery time: | Immediately |
| Terms of Delivery: | Ex Works |
| Location: | Awans - Belgium |

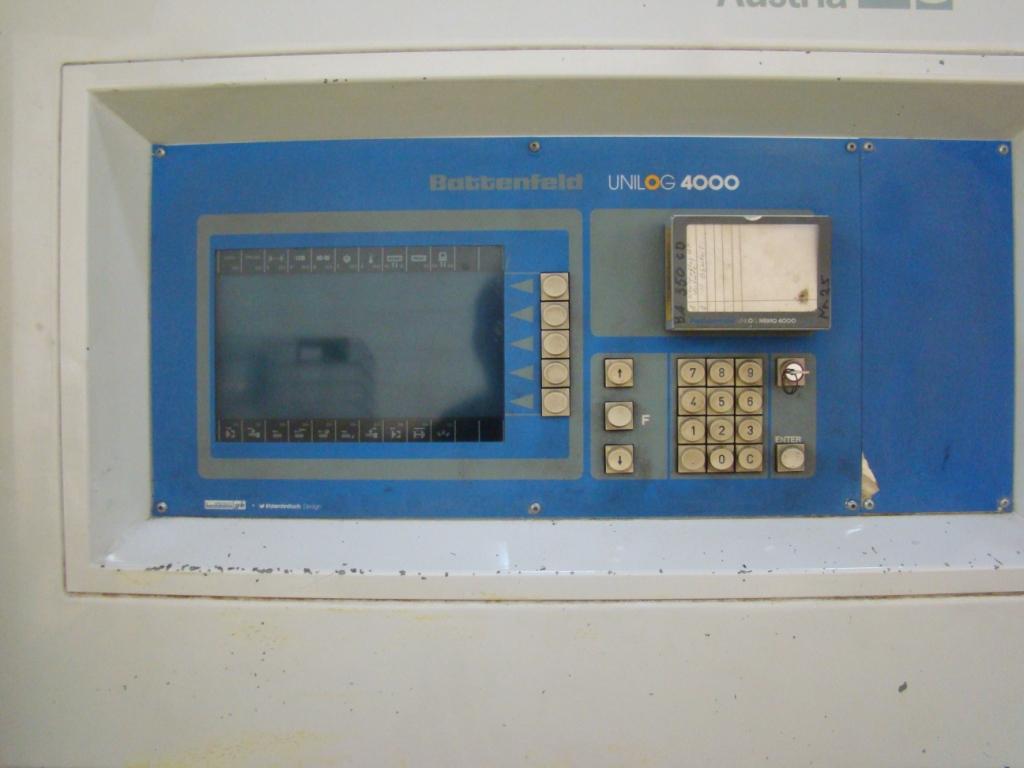

| Controlversion: | Unilog 4000 |
| Screen text: | German |
| Operating Hours | 59754 Hrs. |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 3500 kN |
| Size of mould platens (h x v): | 450 mm x 400 mm |
| Distance between tie bars (h x v): | 304 mm x 254 mm |
| Mould opening stroke: | 325 mm |
| Mould height min.: | 150 mm |
| Mould height max.: | - mm |
| Max daylight: | 475 mm |
| Hydraulic ejector - stroke: | 100 mm |
| Ejector force forward/backward: | 17,5 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 25 mm |
| Ls/D ratio: | |
| Injection pressure: | 2149 bar |
| Stroke volume: | 58,9 ccm |
| Shot weight, PS: | 53,6 g |
| Injection stroke: | 120 mm |
| Screw speed: | 0 - 355 1/min |
| Plasticising rate max.: | 10 g/sec. |
| Nozzle pressure: | 57,7 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Installed heating capacity: | 7,5 kW |
| Adjustable barrel heating zones: | 1+3 |
| Pump power | 6,8 Kw |
| Oil | 170 L |
|
|
|
|---|---|
| Dimensions und weights | |
| Total machine weight: | 2.200 kg |
| Dimensions ( L x B x H ) | 2,96 x 1,26 x 1,80 m |
| Accessories | |
|---|---|
| - 1 x Core - Anti vibration pads - Hopper |
| Additional information | |
|---|---|
| - - fold Waterbattery |
| Picture |
|---|
