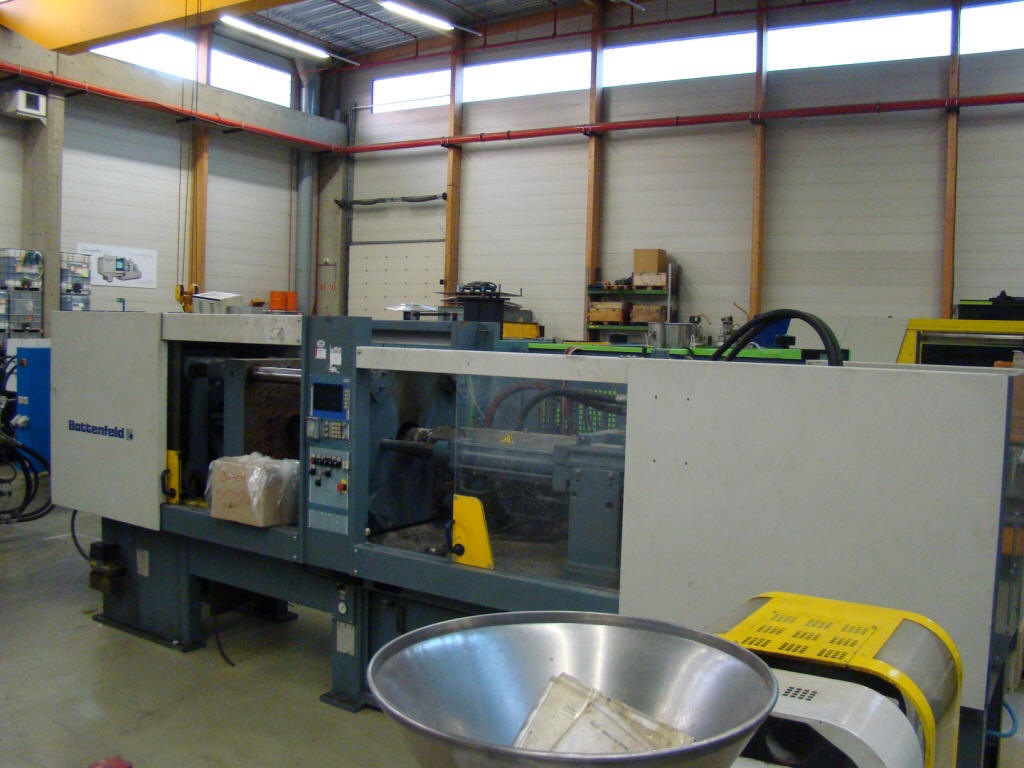

Battenfeld BA 2000 / 1000 BK
| Manufacturer: |
Battenfeld |
| Type of machine: |
BA 2000 / 1000 BK |
| Year: |
1997 |
| Delivery time: |
Immediately |
| Terms of Delivery: |
Ex Works |
| Location: |
Awans - Belgium |

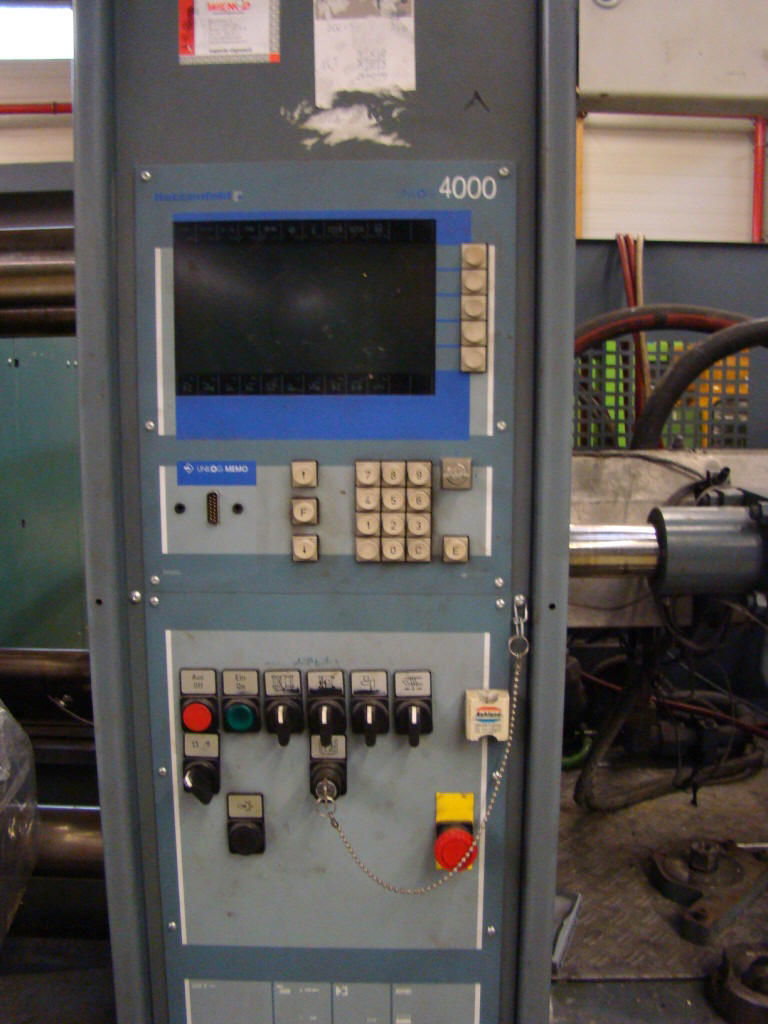

| Controlversion: |
Unilog 4000 B |
| Screen text: |
Dutch |
| Operating hours: |
26.207hrs |
| Price: |
on request |
Technical details
| Clamping unit |
| Clamping force: |
2000 kN |
| Size of mould platens (h x v): |
800 mm x 800 mm |
| Distance between tie bars (h x v): |
560 mm x 560 mm |
| Mould opening stroke: |
450 mm |
| Mould height min.: |
220 mm |
| Mould height max.: |
520 mm |
| Max daylight: |
970 mm |
| Hydraulic ejector - stroke: |
160 mm |
| Ejector force forward/backward: |
67 kN |
| Injection unit |
| Screw diameter: |
55 mm |
| Ls/D ratio: |
20 |
| Injection pressure: |
1943bar |
| Stroke volume: |
522 ccm |
| Shot weight, PS: |
595 g |
| Screw speed: |
285 1/min |
| Plasticising rate max.: |
49 g/s |
| Nozzle pressure: |
131 kN |
| Electric and Hydraulic Equipment |
| Nominal capacity of pump motor: |
30 kW |
| Installed heating capacity: |
22,6 kW |
| Adjustable barrel heating zones: |
1+4 |
| Reservoir capacity: |
560 ltr. |
| Dimensions und weights |
| Dimensions of the machine ca.: |
5,65 m x 1,45 m x 2,10 m |
| Total machine weight: |
9800 kg |
| Accessories |
- Anti vibration
-1 x Cores
- Robot interface Euromap 12
-
- |
