Arburg 470 S - 800 - 170
| Details |
| Manufacturer: | Arburg |
| Type of machine: | 470 S - 800 - 170 |
| Year: | 2010 |
| Delivery time: | Now |
| Terms of Delivery: | Ex Works |
| Location: | Awans - Belgium |
| Controlversion: | Selogica |
| Screen text: | German |
| Pump Hours | 42.656 Hrs. |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 800 kN |
| Mould opening force, max.: | 34 / 255 kN |
| Size of mould platens (h x v): | 637 mm x 637 mm |
| Distance between tie bars (h x v): | 470 mm x 470 mm |
| Mould opening stroke: | 500 mm |
| Mould height min.: | 250 mm |
| Max daylight: | 750 mm |
| Hydraulic ejector - stroke: | 175 mm |
| Ejector force forward/backward: | 40 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 25 mm |
| Ls/D ratio: | 24 |
| Injection pressure: | 2500 bar |
| Stroke volume: | 59 ccm |
| Shot weight, PS: | 54 g |
| Injection rate: | 94 / 136 ccm/s |
| Injection stroke: | 120 mm |
| Screw speed: | 49 / 59 / 69 m/min |
| Nozzle pressure: | 50 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 15 kW |
| Installed heating capacity: | 8,8 Kw |
| Reservoir capacity: | 175 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 3,54 m x 1,71 m x 2,2 m |
| Total machine weight: | 4500 kg |
| Accessories | |
|---|---|
| - Anti vibration pads - Robot Interface Euromap 67 - 1 x Core - 12 x Hotrunner controllers |
| Additional information | |
|---|---|

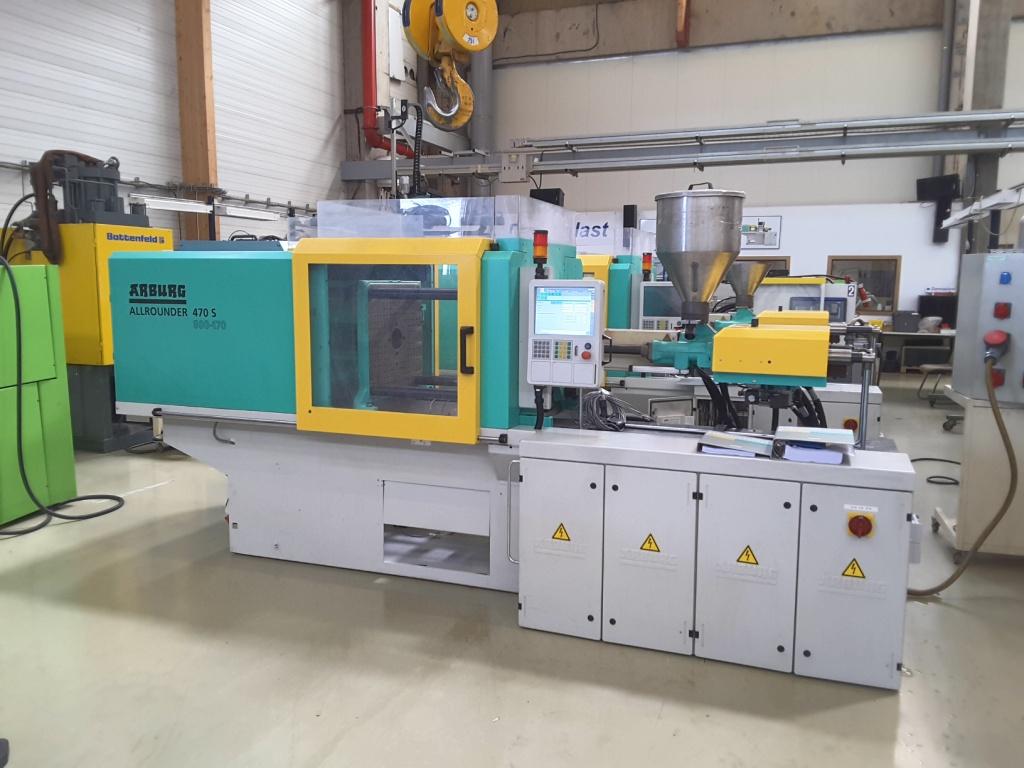

| Picture |
|---|
