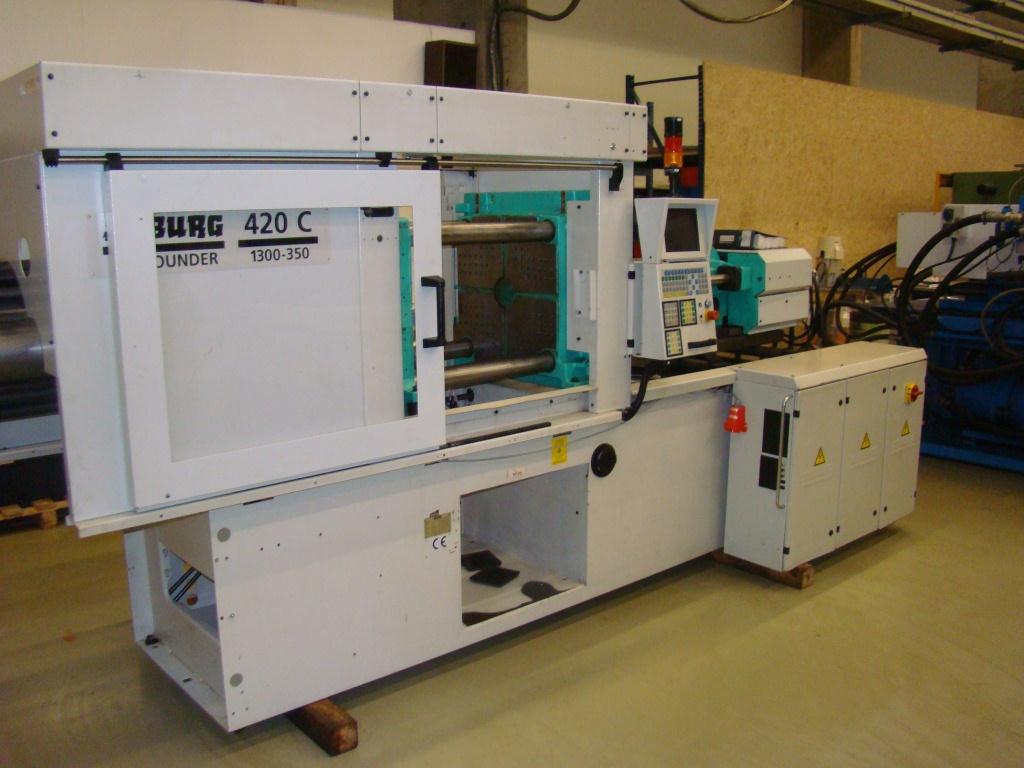

Arburg 420 C 1300 - 350 S
| Details |
| Manufacturer: | Arburg |
| Type of machine: | 420 C 1300-350 S |
| Year: | 1999 |
| Delivery time: | Now |
| Terms of Delivery: | Ex Works |
| Location: | Awans - Belgium |
| Controlversion: | Selogica |
| Screen text: | German |
| Operating hours: | 74.664 hrs |
| Price: | On request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 1300 kN |
| Size of mould platens (h x v): | 605 mm x 605 mm |
| Distance between tie bars (h x v): | 420 mm x 420 mm |
| Mould opening stroke: | 500 mm |
| Mould height min.: | 250 mm |
| Max daylight: | 750 mm |
| Hydraulic ejector - stroke: | 175 mm |
| Ejector force forward/backward: | 40 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 40 mm |
| Ls/D ratio: | 20 |
| Injection pressure: | 2120 bar |
| Stroke volume: | 182 ccm |
| Shot weight, PS: | 153 g |
| Injection rate: | 168 ccm/s |
| Injection stroke: | 145 mm |
| Nozzle pressure: | 50 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 22 kW |
| Installed heating capacity: | 9 kW |
| Adjustable barrel heating zones: | 4+1 |
| Reservoir capacity: | 240 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 4,300 m x 1,645 m x 1,765 m |
| Total machine weight: | 4080 kg |
| Accessories | |
|---|---|
| - Accumulator - Robot Interface Euromap 12 - 4-fold water battery -Anti vibration pads |
| Additional information | |
|---|---|
| - |
| Picture |
|---|
