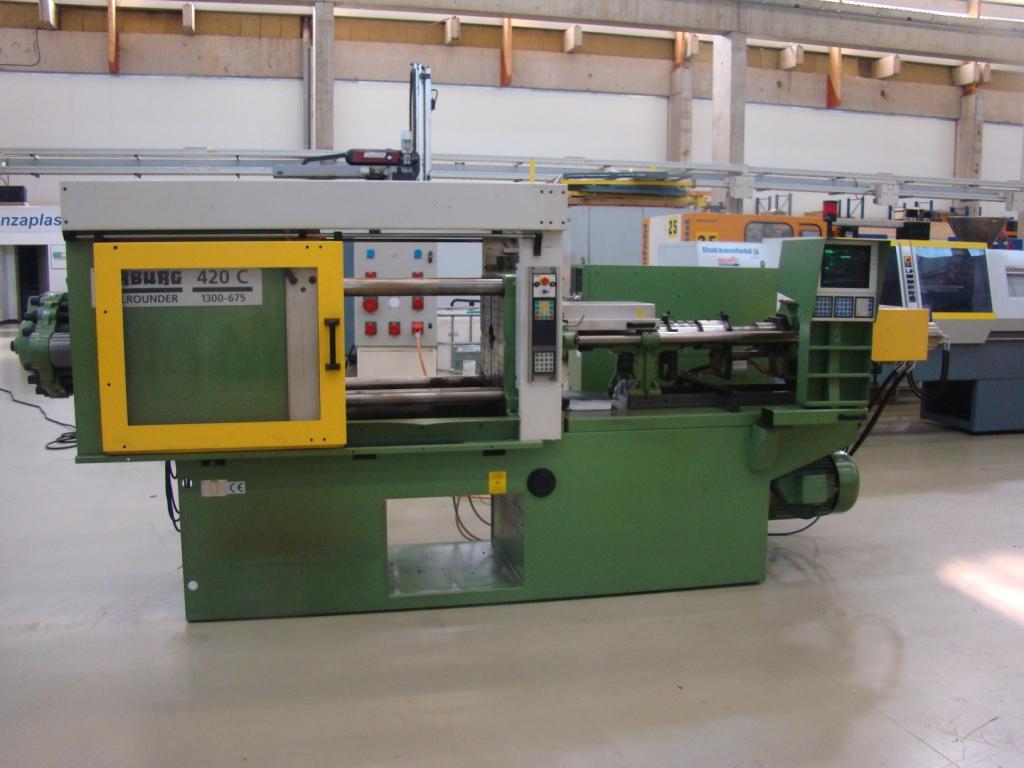

Arburg 420 C -1300 - 675 Elastomer
| Details |
| Manufacturer: | Arburg |
| Type of machine: | 420 C - 1300 - 675 |
| Year: | 1998 |
| Delivery time: | Now |
| Terms of Delivery: | Ex Works |
| Location: | Awans - Belgium |
| Controlversion: | Dialogica |
| Operating hours: | 50.370 Hrs. |
| Screen text: | German |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 1.300 kN |
| Mould opening force, max.: | 35 / 350 kN |
| Size of mould platens (h x v): | 615 mm x 615 mm |
| Distance between tie bars (h x v): | 420 mm x 420 mm |
| Mould opening stroke: | 500 mm |
| Mould height min.: | 250 mm |
| Max daylight: | 750 mm |
| Hydraulic ejector - stroke: | 175 mm |
| Ejector force forward/backward: | 40 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 55 mm |
| Ls/D ratio: | 18 |
| Injection pressure: | 1700 bar |
| Stroke volume: | 427 ccm |
| Shot weight, PS: | 360 g |
| Injection rate: | 260 ccm/s |
| Injection stroke: | 180 mm |
| Screw speed: | 75 m/min |
| Nozzle pressure: | 70 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 30 kW |
| Installed heating capacity: | 13,8 kW |
| Reservoir capacity: | 240 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 5.5 m x 1.6 m x 2.0 m |
| Total machine weight: | 4.750 kg |
| Accessories | |
|---|---|
| - Anti vibration pads - Robot Interface -10 x Hotrunner Controller - 4-fold water battery |
| Additional information | |
|---|---|
| - Robot interface |

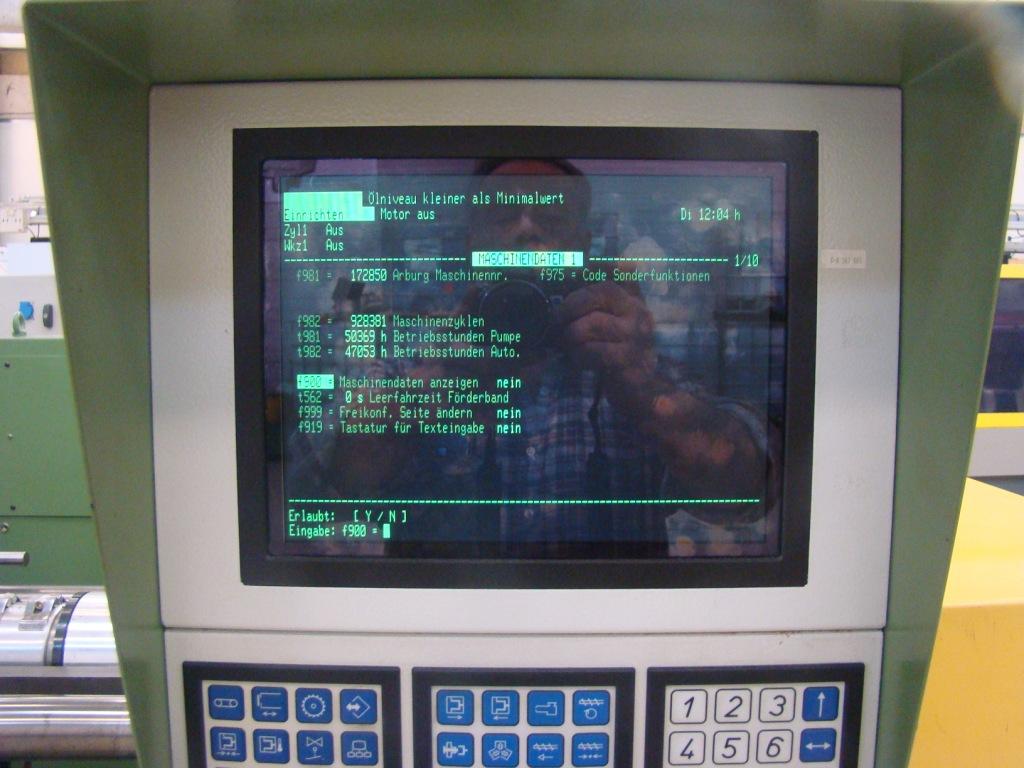

| Picture |
|---|
