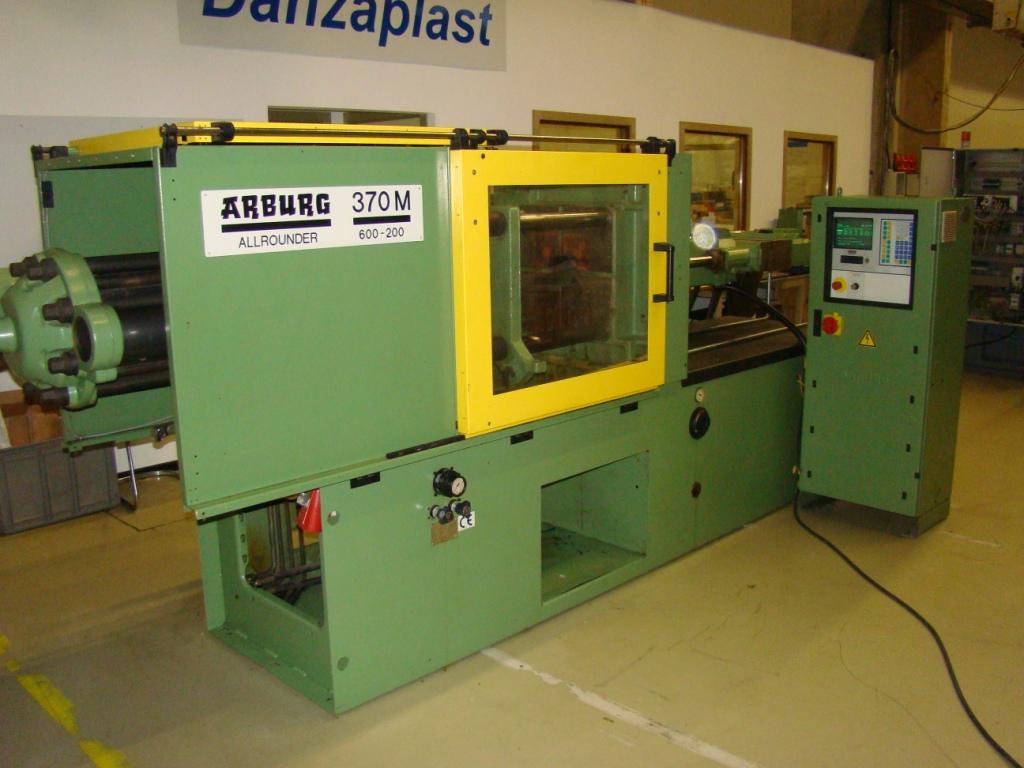

Arburg 370 M 600 - 200
| Manufacturer: |
Arburg |
| Type of machine: |
370 M 600 - 200 |
| Year: |
1995 |
| Delivery time: |
Immediately |
| Terms of Delivery: |
Ex Works |
| Location: |
Awans - Belgium |
| Controlversion: |
Multronica |
| Screen text: |
German |
| Operating hours: |
60.902 Hrs |
| Dry cycle |
2,7 sec. |
| Price: |
on request |
Technical details
| Clamping unit |
| Clamping force: |
600 kN |
| Mould opening force, max.: |
35/290 kN |
| Size of mould platens (h x v): |
545 mm x 545 mm |
| Distance between tie bars (h x v): |
370 mm x 370 mm |
| Mould opening stroke: |
500 mm |
| Mould height min.: |
250 mm |
| Max daylight: |
750 mm |
| Hydraulic ejector - stroke: |
175 mm |
| Ejector force forward/backward: |
40 kN |
| Injection unit |
| Screw diameter: |
30 mm |
| Ls/D ratio: |
23,3 |
| Injection pressure: |
2350 bar |
| Stroke volume: |
106 ccm |
| Shot weight, PS: |
90 g |
| Injection rate: |
110 ccm/s |
| Injection stroke: |
150 mm |
| Screw speed: |
520 1/min |
| Nozzle pressure: |
60 kN |
| Electric and Hydraulic Equipment |
| Nominal capacity of pump motor: |
11 kW |
| Installed heating capacity: |
5,4 kW |
| Reservoir capacity: |
240 ltr. |
| Dimensions und weights |
| Dimensions of the machine ca.: |
4,30 m x 1,85 m x 1,6 m |
| Total machine weight: |
3080 kg |
| Accessories |
- Anti vibration pads
- 4-fold water battery |
