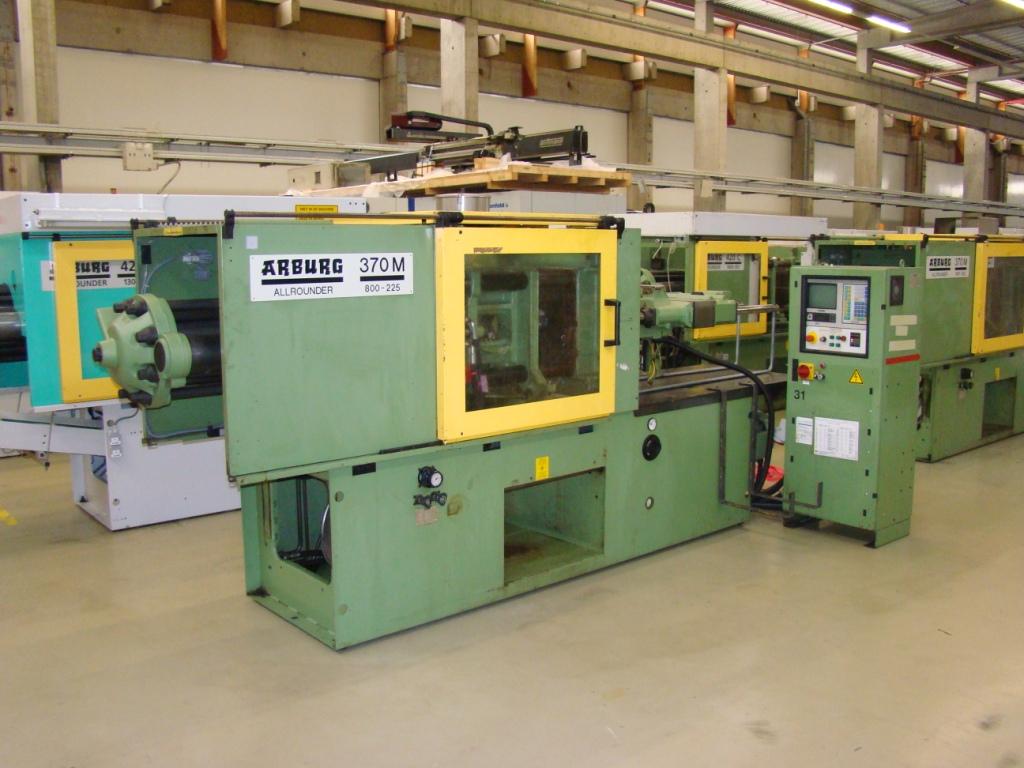

Arburg 370 M 800 - 225
| Details |
| Manufacturer: | Arburg |
| Type of machine: | 370 M 800 - 225 |
| Year: | 1994 |
| Delivery time: | Immediately |
| Terms of Delivery: | Ex Works |
| Location: | Awans - Belgium |

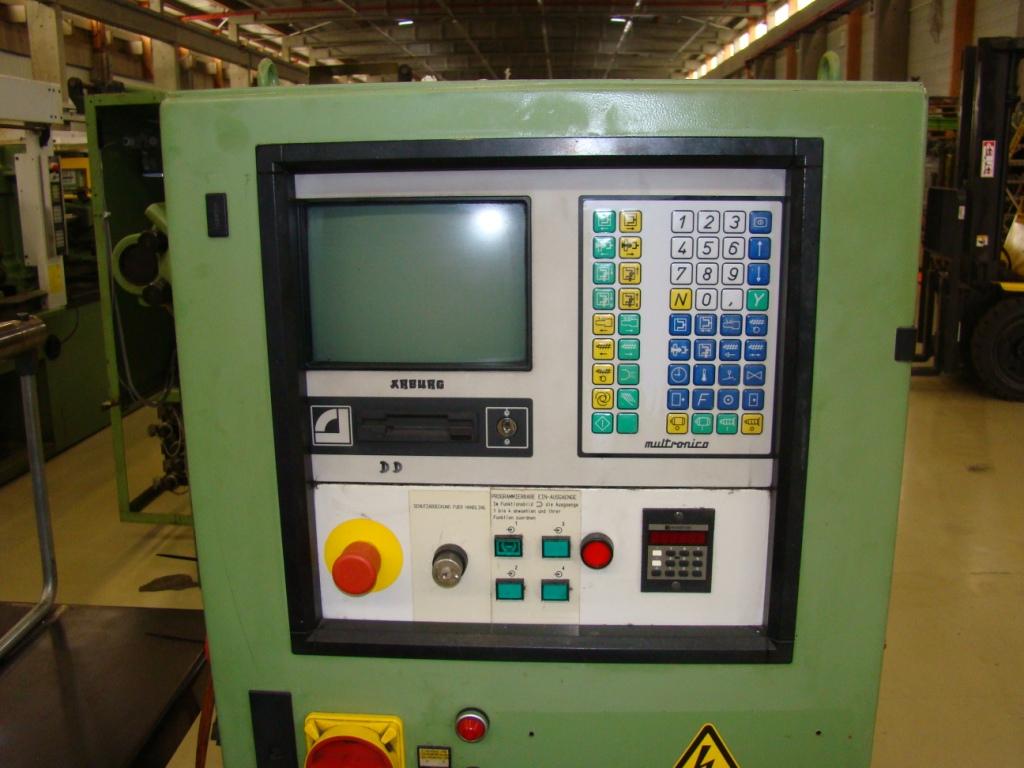

| Controlversion: | Multronica |
| Screen text: | German |
| Operating hours: | Hrs |
| Dry cycle | 2,7 sec. |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 800 kN |
| Mould opening force, max.: | 35 kN |
| Size of mould platens (h x v): | 545 mm x 545 mm |
| Distance between tie bars (h x v): | 370 mm x 370 mm |
| Mould opening stroke: | 500 mm |
| Mould height min.: | 250 mm |
| Max daylight: | 750 mm |
| Hydraulic ejector - stroke: | 175 mm |
| Ejector force forward/backward: | 40/30 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 30 mm |
| Ls/D ratio: | 23,3 |
| Injection pressure: | 2350 bar |
| Stroke volume: | 106 ccm |
| Shot weight, PS: | 90 g |
| Injection rate: | 110 ccm/s |
| Injection stroke: | 150 mm |
| Screw speed: | 520 1/min |
| Nozzle pressure: | 60 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 15 kW |
| Installed heating capacity: | 5,5 kW |
| Reservoir capacity: | 240 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 4,30 m x 1,85 m x 1,6 m |
| Total machine weight: | 3080 kg |
| Accessories | |
|---|---|
| - Robot interface Euromap 12 - 1 x Core - Anti vibration pads - 4-fold water battery |
| Additional information | |
|---|---|
| - |
| Picture |
|---|
