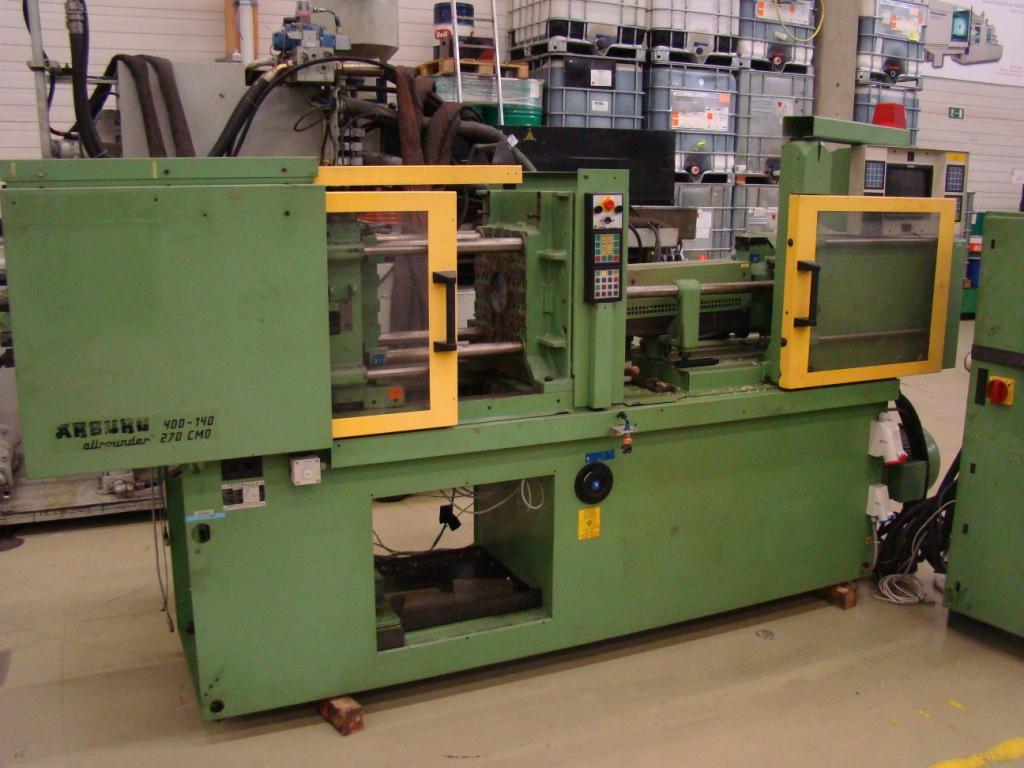

Arburg 270 CMD 400 - 140
| Details |
| Manufacturer: | Arburg |
| Type of machine: | 270 CMD 400 - 140 |
| Year: | 1989 |
| Delivery time: | Immediately |
| Terms of Delivery: | Ex Works |
| Location: | Awans - Belgium |

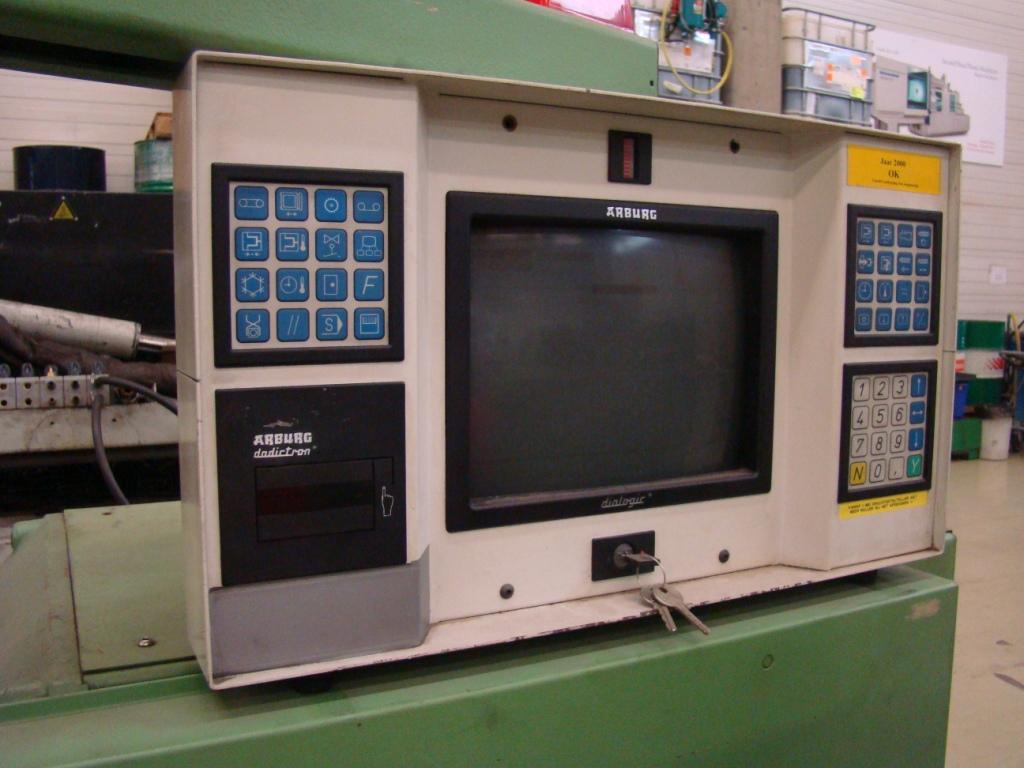

| Controlversion: | Dialogica |
| Screen text: | Dutch |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 400 kN |
| Mould opening force, max.: | 25/100 kN |
| Size of mould platens (h x v): | 405 mm x 405 mm |
| Distance between tie bars (h x v): | 270 mm x 270 mm |
| Mould opening stroke: | 300 mm |
| Mould height min.: | 200 mm |
| Max daylight: | 500 mm |
| Hydraulic ejector - stroke: | 100 mm |
| Ejector force forward/backward: | 30 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 25 mm Arbid |
| Ls/D ratio: | 24 |
| Injection pressure: | 2500 bar |
| Stroke volume: | 54 ccm |
| Shot weight, PS: | 45 g |
| Injection rate: | 65 ccm/s |
| Injection stroke: | 110 mm |
| Screw speed: | 1/min |
| Nozzle pressure: | 55 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 11 kW |
| Installed heating capacity: | 5,11 kW |
| Reservoir capacity: | 180 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 3,52 m x 1,31 m x 1,6 m |
| Total machine weight: | 2400 kg |
| Accessories | |
|---|---|
| - Anti vibration pads - - 4-fold water battery |
| Additional information | |
|---|---|
| - Robot interface |
| Picture |
|---|
