| Details | |

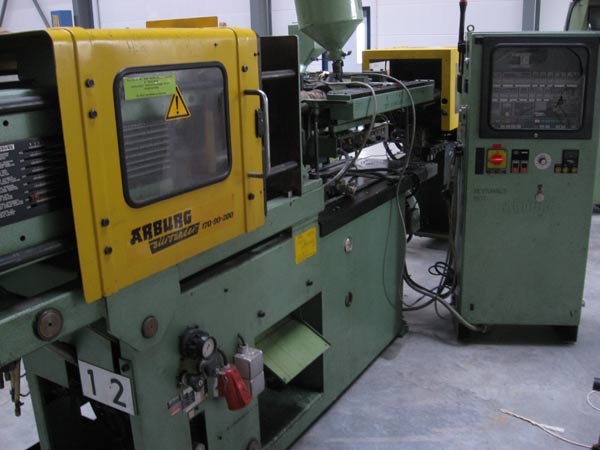

| Manufacturer: | Arburg |
| Type of machine: | 170 - 90 - 200 |
| Clamping force: | 200 Kn |
| Year: | 1981 |
| Term of Delivery: | ex works unloaded, uninsured |
| Delivery time: | now |
| Controlversion: | Hydronica |
| Price: | price on request |
| Technical details | |
| screw size: | 18 mm |
| injection weight: | 20 gr / PS |
| max. swept volume: | 24 cm³ |
| spec. injection pressure increased: | 3575 bar |
| opening stroke: | 225 mm |
| mold fixing platen size h x v: | 280 mm x 280 mm |
| distance between tie-bars h x v: | 170 x 170 mm |
| mold hight min/max: | 175 mm |
| screen text: | |
| operating hours: | hrs. |
| weight of the machine ca.: | 1500 kg |
| dimensions of the machine ca.: | 3.7 m x 1.8 m x 1,6 m |
| Machine accessories | |
 |
|
