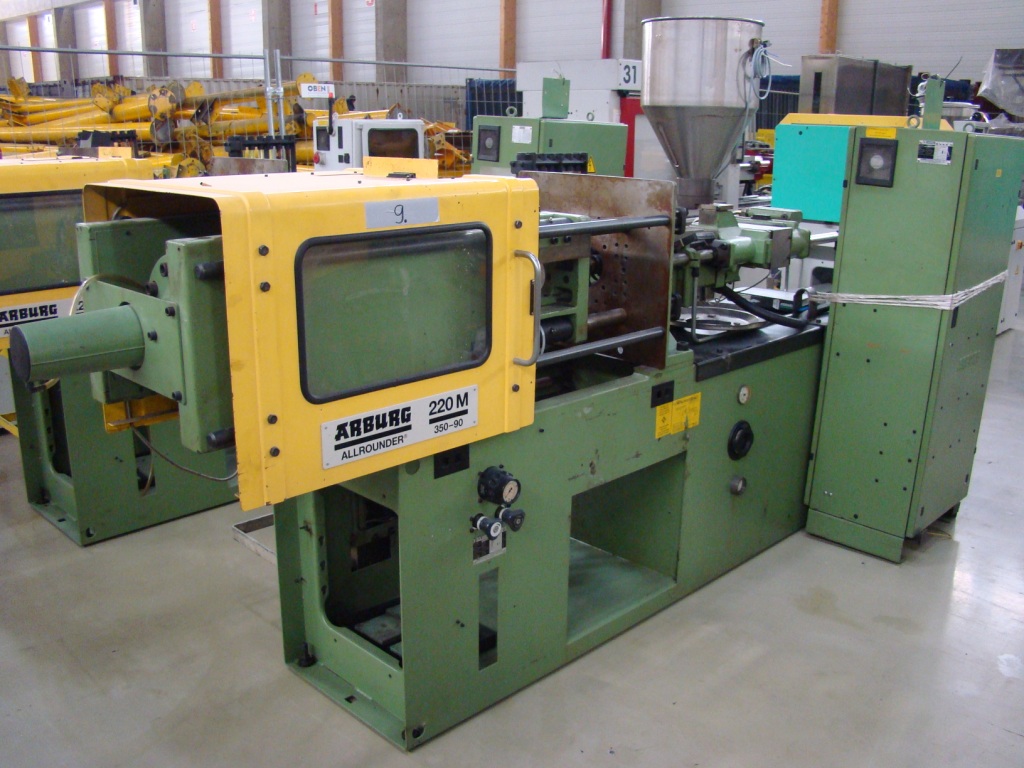

Manufacturer:

Arburg

Type of machine:

220 M 350-90

Year:

1990

Delivery time:

Immediately

Terms of Delivery:

Ex Works

Location:

Eschweiler - Germany

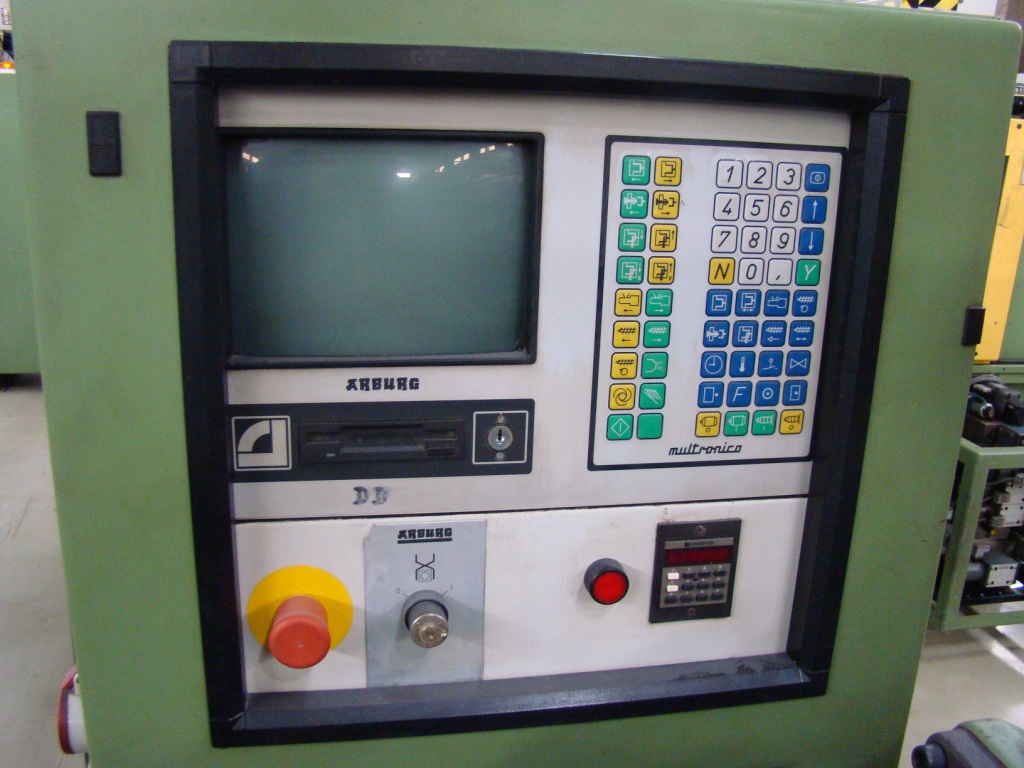

Controlversion:

Multronica

Screen text:

German

Price:

on request

Clamping force:

350 kN

Mould opening force, max.:

22 kN

Size of mould platens (h x v):

346 mm x 346 mm

Distance between tie bars (h x v):

221 mm x 221 mm

Mould opening stroke:

275 mm

Mould height min.:

200 mm

Max daylight:

475 mm

Hydraulic ejector - stroke:

100 mm

Ejector force forward/backward:

20/12,3 kN

Screw diameter:

25 mm

Ls/D ratio:

20

Injection pressure:

1860 bar

Stroke volume:

49 ccm

Shot weight, PS:

40 g

Injection rate:

88 ccm/s

Injection stroke:

100 mm

Screw speed:

595 1/min

Nozzle pressure:

60 kN

Nominal capacity of pump motor:

11 kW

Installed heating capacity:

4,5 kW

Reservoir capacity:

160 ltr.

Dimensions of the machine ca.:

3,3 m x 1,70 m x 1,92 m

Total machine weight:

1500 kg

- Anti vibration pads
- Hopper
- 6-fold water battery

- 1 x core pull
- Robot interface
