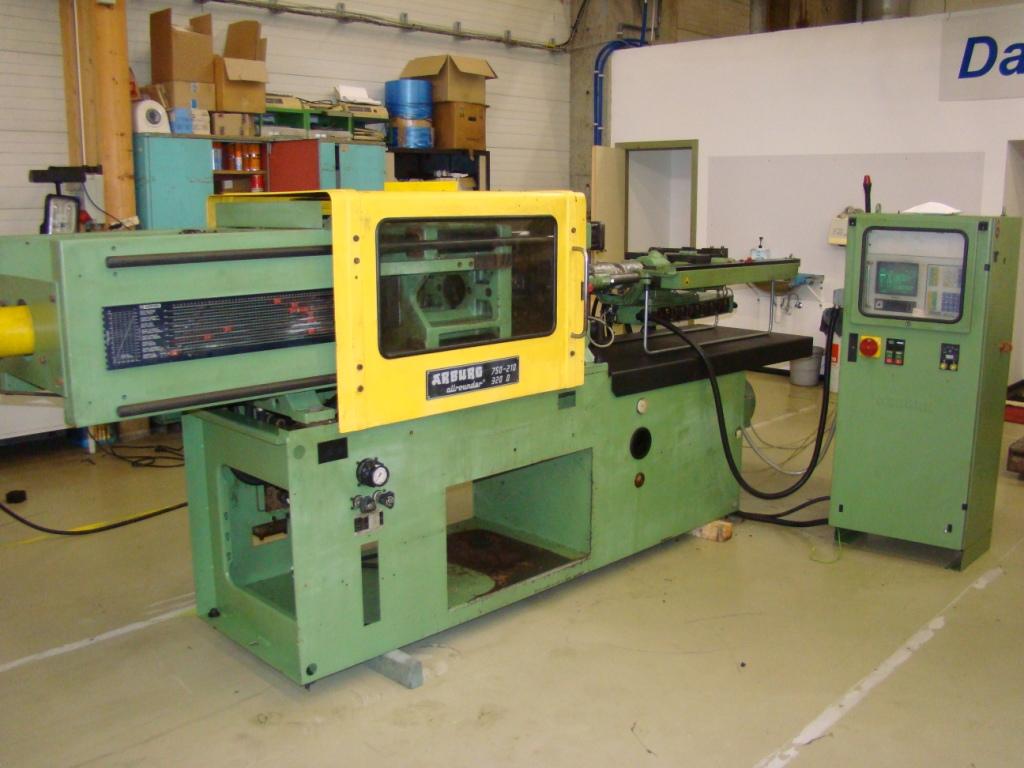

Arburg 320 D - 750 - 210
| Details |
| Manufacturer: | Arburg |
| Type of machine: | 320 D -750 - 210 |
| Year: | 1989 |
| Delivery time: | Immediately |
| Terms of Delivery: | Ex Works |
| Location: | Awans - Belgium |

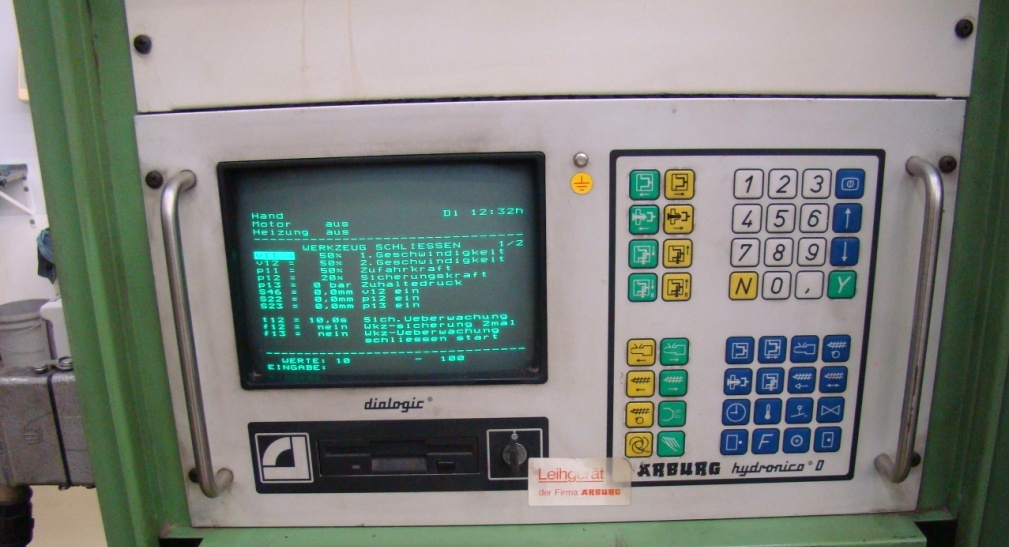

| Controlversion: | Dialogic |
| Screen text: | |
| Operating hours: | 98724 Hrs |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 750 kN |
| Mould opening force, max.: | 36,8 |
| Size of mould platens (h x v): | 490 x 490 |
| Distance between tie bars (h x v): | 320 x 320 |
| Mould opening stroke: | 375 mm |
| Mould height min.: | 250 mm |
| Max daylight: | 625 mm |
| Hydraulic ejector - stroke: | 150 mm |
| Ejector force forward/backward: | 38 Kn |
| Injection unit | |
|---|---|
| Screw diameter: | 45 mm |
| Ls/D ratio: | 15 |
| Injection pressure: | 1150 bar |
| Stroke volume: | 186 ccm |
| Shot weight, PS: | 158 g |
| Injection rate: | 201 ccm/s |
| Injection stroke: | 150 mm |
| Screw speed: | 570 1/min |
| Nozzle pressure: | 72,3 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 15 kW |
| Installed heating capacity: | 5,560 KW |
| Reservoir capacity: | 220 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 4,30 m x 1,85 m x 1,6 m |
| Total machine weight: | 2400 kg |
| Accessories | |
|---|---|
| - - Anti vibration pads |
| Additional information | |
|---|---|
| - 1 x Core - - |
| Picture |
|---|
