Arburg 420 C 800 - 250 S
| Details |
| Manufacturer: | Arburg |
| Type of machine: | 420 C 800 - 250 |
| Year: | 1999 |
| Delivery time: | Immediately |
| Terms of Delivery: | Ex Works |
| Location: | Awans - Belgium |
| Controlversion: | Selogica |
| Screen text: | German / Italy |
| Operating hours: | 13.132 Hrs |
| Dry cycle | 3,3 sec. |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 800 KN |
| Mould opening force, max.: | 35/250 kN |
| Size of mould platens (h x v): | 570 mm x 570 mm |
| Distance between tie bars (h x v): | 420 mm x 420 mm |
| Mould opening stroke: | 500 mm |
| Mould height min.: | 250 mm |
| Max daylight: | 750 mm |
| Hydraulic ejector - stroke: | 175 mm |
| Ejector force forward/backward: | 40 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 40 mm |
| Ls/D ratio: | 17,5 |
| Injection pressure: | 1390 bar |
| Stroke volume: | 188 ccm |
| Shot weight, PS: | 158 g |
| Injection rate: | 188 cm/s |
| Injection stroke: | 150 mm |
| Screw speed: | 66 m/min |
| Nozzle pressure: | 60 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 15 kW |
| Installed heating capacity: | 5,5 kW |
| Reservoir capacity: | 230 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 4,300 m x 1,60 m x 2,08 m |
| Total machine weight: | 3.200 kg |
| Accessories | |
|---|---|
| - 6 x Hotrunner Controllers - Anti vibration pads |
| Additional information | |
|---|---|
| -fold Waterbattery |

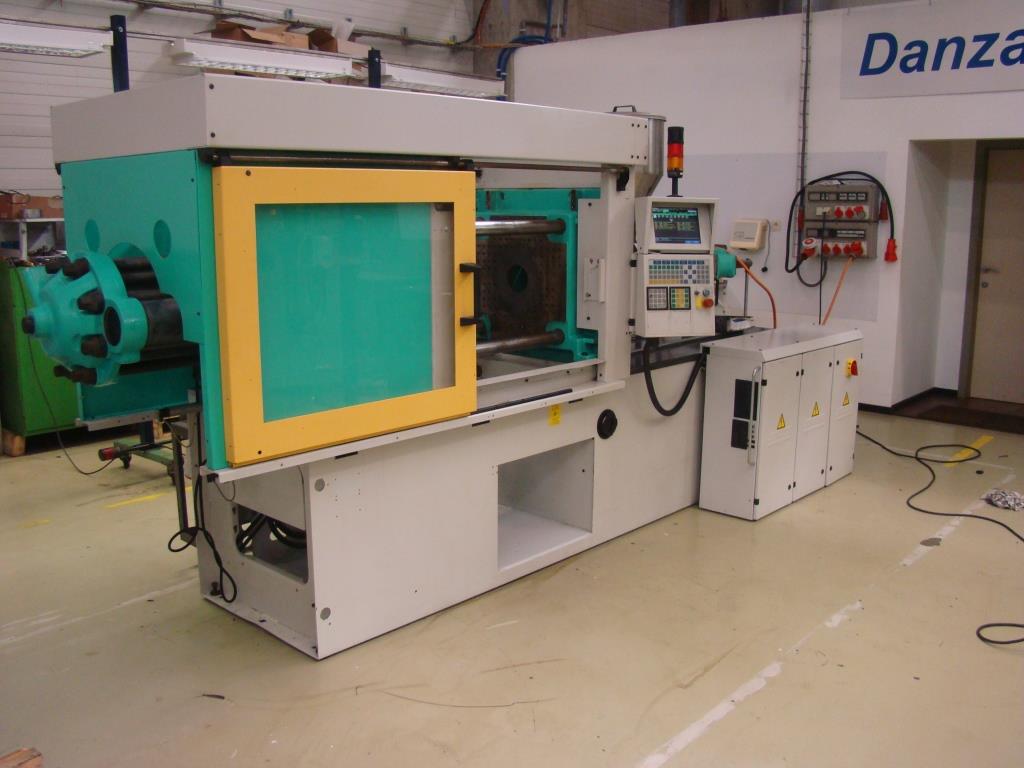

| Picture |
|---|
