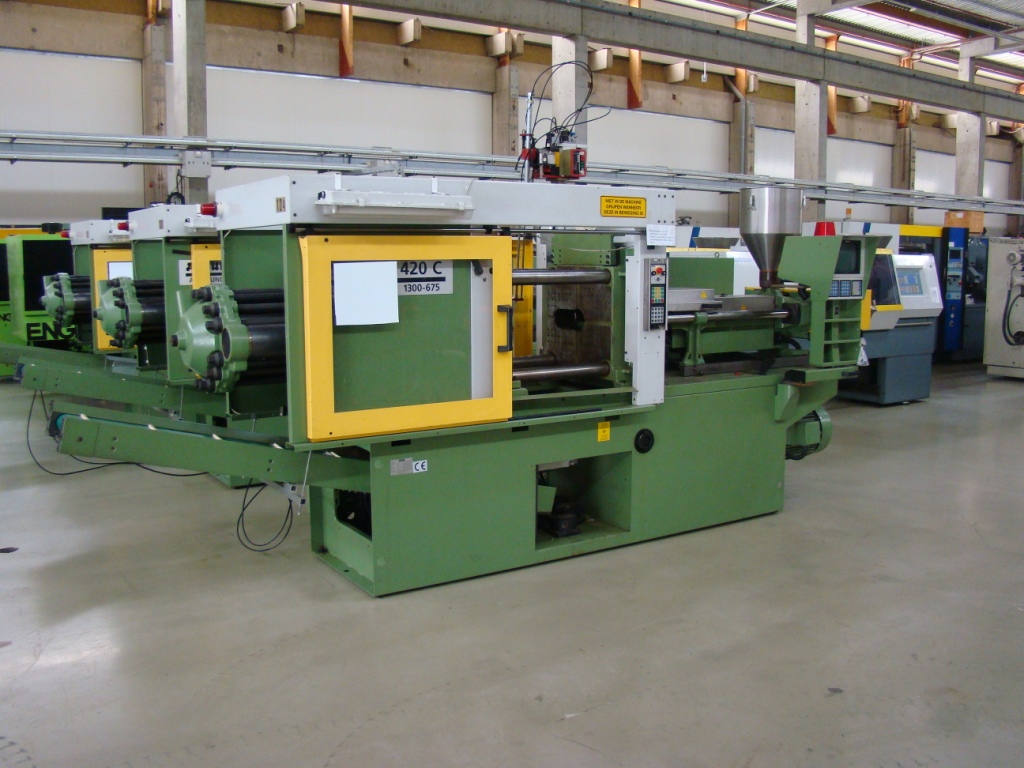

Arburg 420 C 1300 - 625
| Manufacturer: |
Arburg |
| Type of machine: |
420 C 1300 - 625 |
| Year: |
1997 |
| Delivery time: |
Immediately |
| Terms of Delivery: |
Ex Works |
| Location: |
Awans - Belgium |
| Controlversion: |
Dialogica |
| Screen text: |
Dutch / |
| Operating hours: |
48.700 Hrs |
| Dry cycle |
3,5 sec. |
| Price: |
on request |
Technical details
| Clamping unit |
| Clamping force: |
1.300 KN |
| Mould opening force, max.: |
35/350 kN |
| Size of mould platens (h x v): |
615mm x 615 mm |
| Distance between tie bars (h x v): |
420 mm x 420 mm |
| Mould opening stroke: |
500 mm |
| Mould height min.: |
250 mm |
| Max daylight: |
750 mm |
| Hydraulic ejector - stroke: |
175 mm |
| Ejector force forward/backward: |
40 kN |
| Injection unit |
| Screw diameter: |
55 mm |
| Ls/D ratio: |
18 |
| Injection pressure: |
1700 bar |
| Stroke volume: |
427 ccm |
| Shot weight, PS: |
360 g |
| Injection rate: |
260 cm/s |
| Injection stroke: |
180 mm |
| Screw speed: |
m/min |
| Nozzle pressure: |
70 kN |
| Electric and Hydraulic Equipment |
| Nominal capacity of pump motor: |
30 kW |
| Installed heating capacity: |
13,8 kW |
| Reservoir capacity: |
235 ltr. |
| Dimensions und weights |
| Dimensions of the machine ca.: |
4,350 m x 1,60 m x 2,08 m |
| Total machine weight: |
4.330 kg |
| Accessories |
- Robot Interface ( Euromap 12)
- Anti vibration pads |
| Additional information |
-
-
- -fold Waterbattery |
