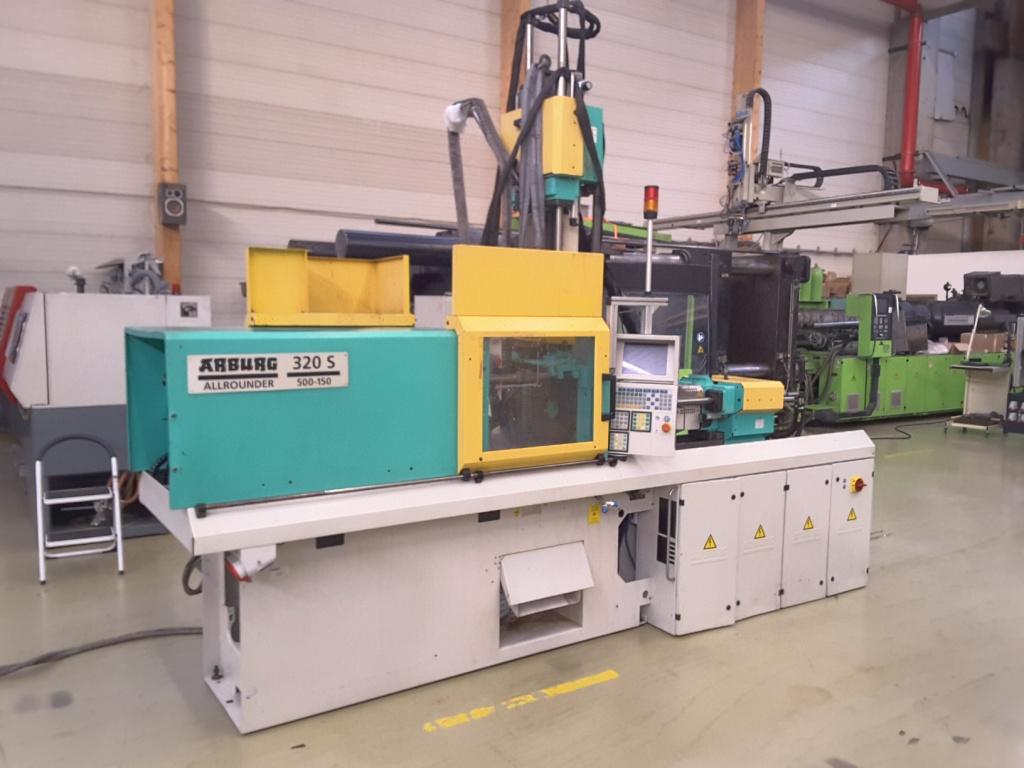

Arburg 320 S 500 - 150 / 150
| Details |
| Manufacturer: | Arburg |
| Type of machine: | 320 S 500 - 150/150 |
| Year: | 2001 |
| Delivery time: | Immediately |
| Terms of Delivery: | Ex Works |
| Location: | Awans - Belgium |
| Controlversion: | Selogica |
| Screen text: | German / |
| Operating hours: | Hrs |
| Dry cycle | 1,2 sec. |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 500 KN |
| Mould opening force, max.: | 25/130 kN |
| Size of mould platens (h x v): | 472 mm x 472 mm |
| Distance between tie bars (h x v): | 320 mm x 320 mm |
| Mould opening stroke: | 350 mm |
| Mould height min.: | 225 mm |
| Max daylight: | 575 mm |
| Hydraulic ejector - stroke: | 125 mm |
| Ejector force forward/backward: | 30 kN |
| Injection unit | ||
|---|---|---|
| H | V | |
| Screw diameter: | 30 mm | 30 mm |
| Ls/D ratio: | 20 | 20 |
| Injection pressure: | 2210 bar | 2210 bar |
| Stroke volume: | 78 ccm | 78 ccm |
| Shot weight, PS: | 71 g | 71 g |
| Injection rate: | 112 cm/s | 80 cm/s |
| Injection stroke: | 110 mm | 110 mm |
| Screw speed: | 52 m/min | 52 m/min |
| Nozzle pressure: | 50 kN | 50 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 15 kW |
| Installed heating capacity: | 9 kW |
| Reservoir capacity: | 120 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 3,4 m x 1,425 m x 2,00 m |
| Total machine weight: | 2.330 kg |
| Accessories | |
|---|---|
| - 1 x Core - Robot interface Euromap 12 - 3 x Hotrunner controllers - Anti vibration pads |
| Additional information | |
|---|---|
| - - - -fold Waterbattery |
| Picture |
|---|
