Arburg 320 - 850 - 210 - 90 D
| Details |
| Manufacturer: | Arburg |
| Type of machine: | 320 D - 850 - 210 - 900 |
| Year: | 1990 |
| Delivery time: | Immediately |
| Terms of Delivery: | Ex Works |
| Location: | Awans - Belgium |
| Controlversion: | Hydronica D |
| Screen text: | English / German |
| Operating hours: | 52923Hrs |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 850 kN |
| Mould opening force, max.: | 36.8 kN |
| Size of mould platens (h x v): | 490 mm x 490 mm |
| Distance between tie bars (h x v): | 320 mm x 320 mm |
| Mould opening stroke: | 375 mm |
| Mould height min.: | 250 mm |
| Max daylight: | 625 mm |
| Hydraulic ejector - stroke: | 150 mm |
| Ejector force forward/backward: | 38/26,7 kN |
| Injection unit 210 - 90 | |
|---|---|
| Screw diameter: | 35 mm - 25 mm |
| Ls/D ratio: | 17 - 18 |
| Injection pressure: | 1500 - 2400 bar |
| Stroke volume: | 70 - 47 ccm |
| Shot weight, PS: | 117 - 59 g / PS |
| Injection rate: | - ccm/s |
| Injection stroke: | 145 mm |
| Screw speed: | 570 U /min |
| Nozzle pressure: | 50 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 11 kW |
| Installed heating capacity: | 10,6 kW |
| Reservoir capacity: | 200 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 2,32 m x 1,41 m x 2,00 m |
| Total machine weight: | 2.200 kg |
| Accessories | |
|---|---|
| - - Anti vibration pads |
| Additional information | |
|---|---|
| - - - -fold Waterbattery |

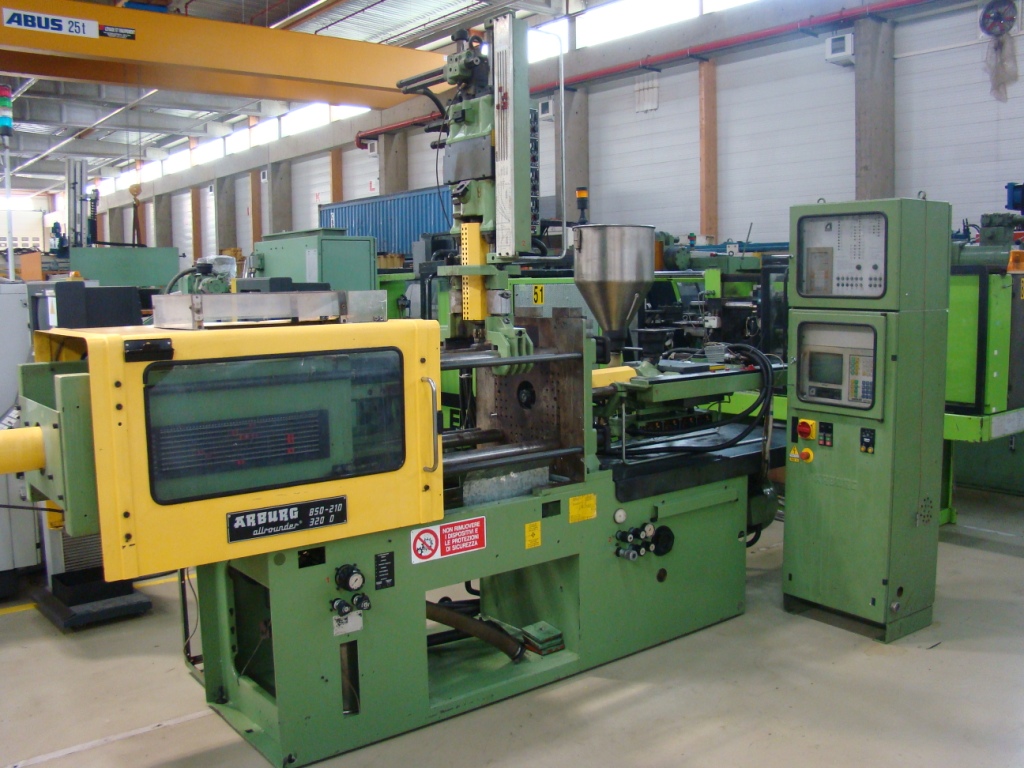

| Picture |
|---|
