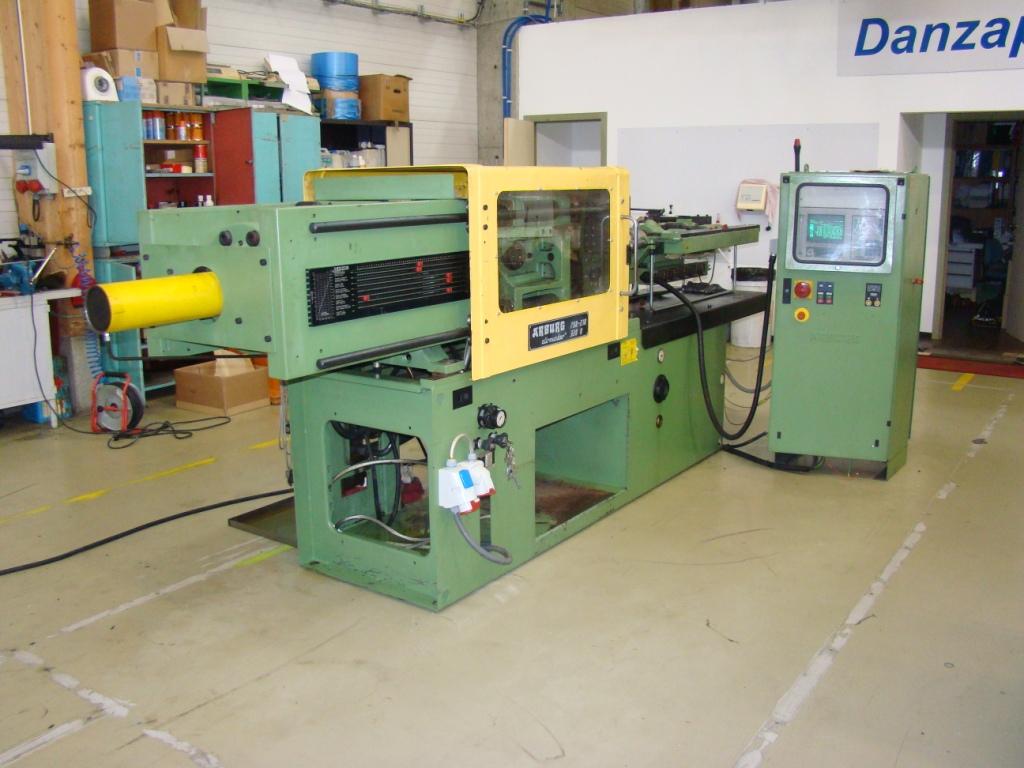

Arburg 320 D - 750 - 210
| Manufacturer: |
Arburg |
| Type of machine: |
320 D - 750 - 210 |
| Year: |
1990 |
| Delivery time: |
Immediately |
| Terms of Delivery: |
Ex Works |
| Location: |
Awans - Belgium |
| Controlversion: |
Dialogica |
| Screen text: |
|
| Operating hours: |
Hrs |
| Price: |
on request |
Technical details
| Clamping unit |
| Clamping force: |
750 kN |
| Mould opening force, max.: |
36,8 |
| Size of mould platens (h x v): |
490 x 490 |
| Distance between tie bars (h x v): |
320 x 320 |
| Mould opening stroke: |
375 mm |
| Mould height min.: |
250 mm |
| Max daylight: |
625 mm |
| Hydraulic ejector - stroke: |
150 mm |
| Ejector force forward/backward: |
38 Kn |
| Injection unit |
| Screw diameter: |
45 mm |
| Ls/D ratio: |
15 |
| Injection pressure: |
1150 bar |
| Stroke volume: |
186 ccm |
| Shot weight, PS: |
158 g |
| Injection rate: |
201 ccm/s |
| Injection stroke: |
150 mm |
| Screw speed: |
570 1/min |
| Nozzle pressure: |
72,3 kN |
| Electric and Hydraulic Equipment |
| Nominal capacity of pump motor: |
15 kW |
| Installed heating capacity: |
5,560 KW |
| Reservoir capacity: |
220 ltr. |
| Dimensions und weights |
| Dimensions of the machine ca.: |
4,30 m x 1,85 m x 1,6 m |
| Total machine weight: |
2400 kg |
| Accessories |
-
- Anti vibration pads |
| Additional information |
- 1 x Core
-
- |
