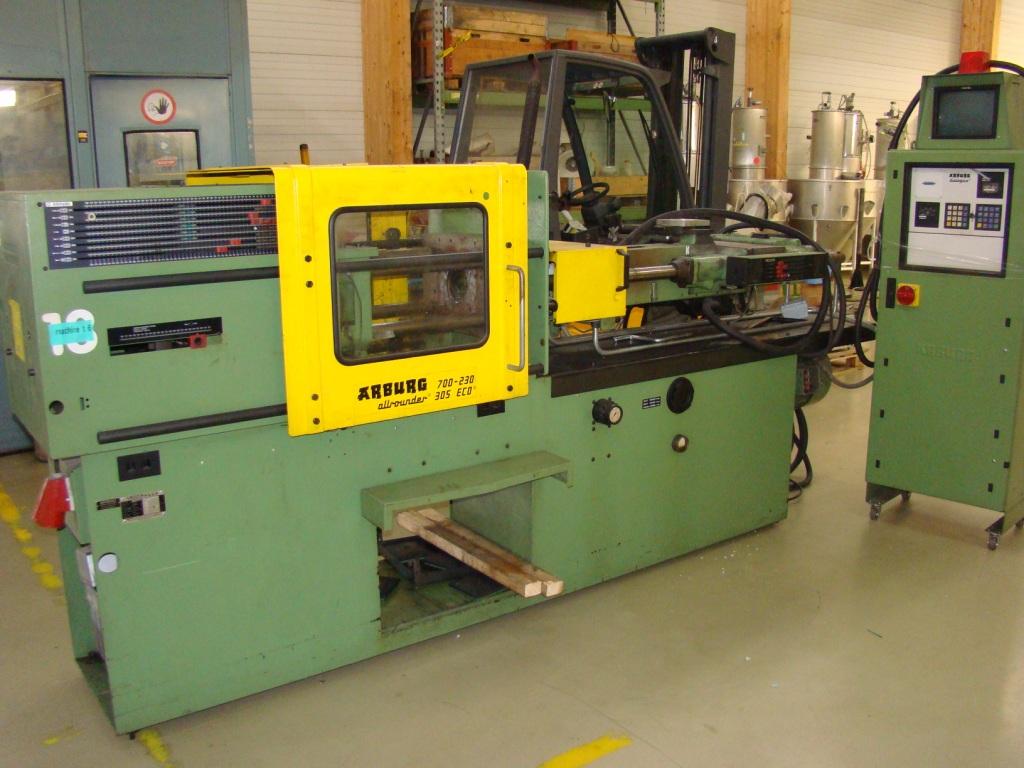

Arburg 305 Eco - 700 - 230
| Manufacturer: |
Arburg |
| Type of machine: |
305 Eco - 700 - 230 |
| Year: |
1986 |
| Delivery time: |
Immediately |
| Terms of Delivery: |
Ex Works |
| Location: |
Awans - Belgium |

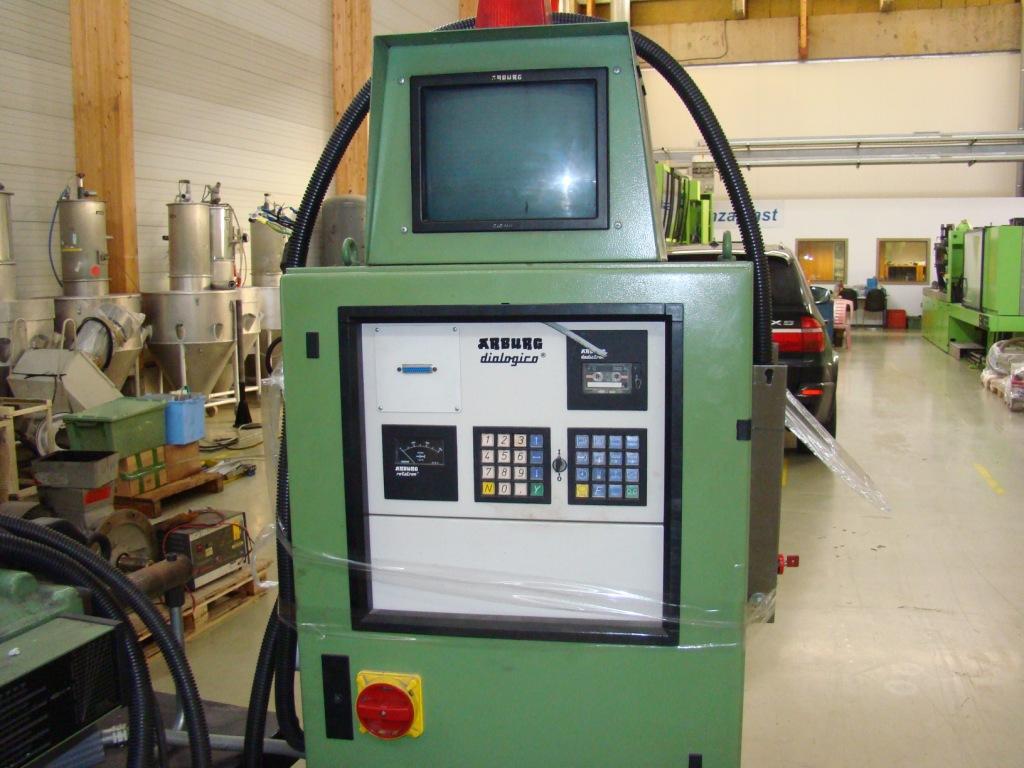

| Controlversion: |
Dialogica |
| Screen text: |
Dutch |
| Operating hours: |
Hrs |
| Price: |
on request |
Technical details
| Clamping unit |
| Clamping force: |
700 kN |
| Mould opening force, max.: |
kN |
| Size of mould platens (h x v): |
432 mm x 310 mm |
| Distance between tie bars (h x v): |
305 mm x 135 mm |
| Mould opening stroke: |
250 mm |
| Mould height min.: |
200 - 400 mm |
| Max daylight: |
650 mm |
| Hydraulic ejector - stroke: |
70 mm |
| Ejector force forward/backward: |
30 kN |
| Injection unit |
| Screw diameter: |
35 mm |
| Ls/D ratio: |
20,3 |
| Injection pressure: |
1650 bar |
| Stroke volume: |
140 ccm |
| Shot weight, PS: |
100,8 g |
| Injection rate: |
110 ccm/s |
| Injection stroke: |
150 mm |
| Screw speed: |
1/min |
| Nozzle pressure: |
60 kN |
| Electric and Hydraulic Equipment |
| Nominal capacity of pump motor: |
11 kW |
| Installed heating capacity: |
6,7 kW |
| Reservoir capacity: |
50 ltr. |
| Dimensions und weights |
| Dimensions of the machine ca.: |
3,45m x 0.9 m x 1.5 m |
| Total machine weight: |
1750 kg |
| Accessories |
- Robot interface
- Anti vibration pads |
| Additional information |
-
-
- 6 fold Waterbattery |
