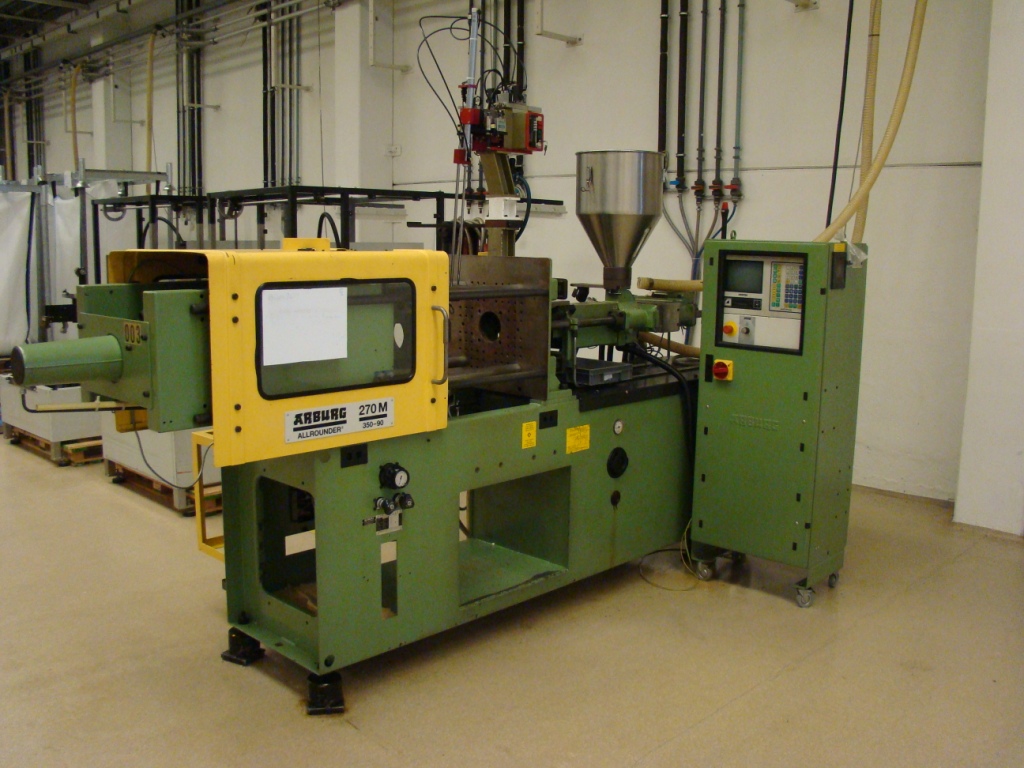

Arburg 270 M 350 - 90
| Manufacturer: |
Arburg |
| Type of machine: |
270 M 350 - 90 |
| Year: |
1990 |
| Delivery time: |
Immediately |
| Terms of Delivery: |
Ex Works |
| Location: |
Awans - Belgium |
| Controlversion: |
Multronica |
| Screen text: |
Dutch / |
| Operating hours: |
48.000Hrs |
| Dry cycle |
1,8 sec. |
| Price: |
on request |
Technical details
| Clamping unit |
| Clamping force: |
350 kN |
| Mould opening force, max.: |
31 kN |
| Size of mould platens (h x v): |
400 mm x 400 mm |
| Distance between tie bars (h x v): |
270 mm x 270 mm |
| Mould opening stroke: |
325 mm |
| Mould height min.: |
225 mm |
| Max daylight: |
550 mm |
| Hydraulic ejector - stroke: |
125 mm |
| Ejector force forward/backward: |
31,4 kN |
| Injection unit |
| Screw diameter: |
25 mm |
| Ls/D ratio: |
20 |
| Injection pressure: |
1860 bar |
| Stroke volume: |
49 ccm |
| Shot weight, PS: |
40 g |
| Injection rate: |
88 cm/s |
| Injection stroke: |
100 mm |
| Screw speed: |
121 1/min |
| Nozzle pressure: |
60 kN |
| Electric and Hydraulic Equipment |
| Nominal capacity of pump motor: |
11 kW |
| Installed heating capacity: |
5,1 kW |
| Reservoir capacity: |
220 ltr. |
| Dimensions und weights |
| Dimensions of the machine ca.: |
3,65 m x 1,07 m x 2,00 m |
| Total machine weight: |
1.720 kg |
| Accessories |
-
- Anti vibration pads |
| Additional information |
-
-
- -fold Waterbattery |
