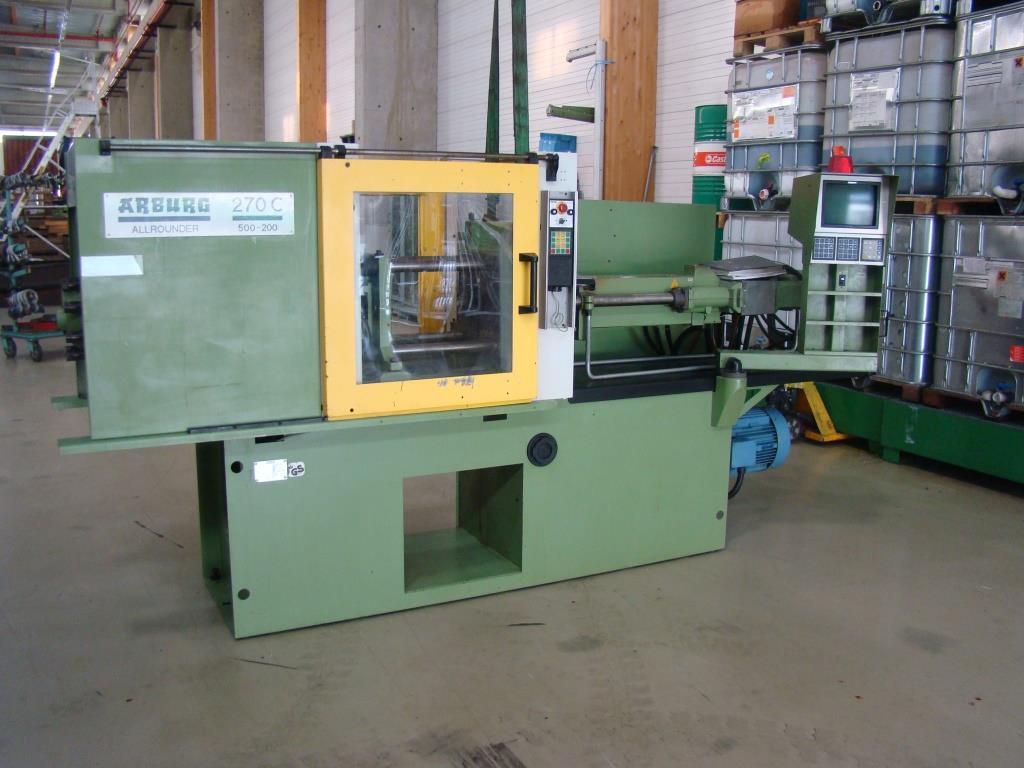

Arburg 270 C - 500 - 200
| Details |
| Manufacturer: | Arburg |
| Type of machine: | 270 C - 500 - 200 |
| Year: | 1993 |
| Delivery time: | Immediately |
| Terms of Delivery: | Ex Works |
| Location: | Awans - Belgium |

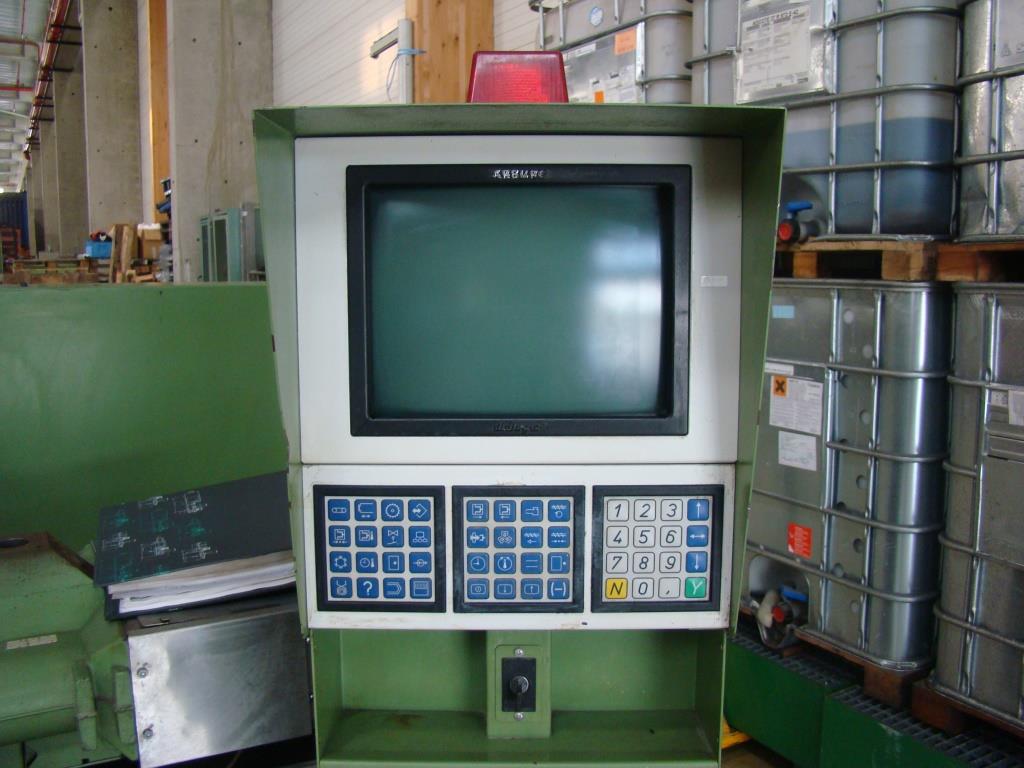

| Controlversion: | Dialogica |
| Screen text: | |
| Operating hours: | Hrs |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 500 kN |
| Mould opening force, max.: | 125 Kn |
| Size of mould platens (h x v): | 405 x 405 |
| Distance between tie bars (h x v): | 270 x 270 |
| Mould opening stroke: | 350 |
| Mould height min.: | 200 |
| Max daylight: | 550 |
| Hydraulic ejector - stroke: | 125 |
| Ejector force forward/backward: | 30 |
| Injection unit | |
|---|---|
| Screw diameter: | 35 mm |
| Ls/D ratio: | 20 |
| Injection pressure: | 1750 bar |
| Stroke volume: | 144 ccm |
| Shot weight, PS: | 121 g |
| Injection rate: | 150 ccm/s |
| Injection stroke: | 150 mm |
| Screw speed: | 1/min |
| Nozzle pressure: | 70 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 15 kW |
| Installed heating capacity: | 5,4 kW |
| Reservoir capacity: | ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 3,3 m x 1,41 m x 1,72 m |
| Total machine weight: | 2400 kg |
| Accessories | |
|---|---|
| - - Anti vibration pads |
| Additional information | |
|---|---|
| - Robot interface - - -fold Waterbattery |
| Picture |
|---|
