Arburg 270 D - 500 - 90
| Details |
| Manufacturer: | Arburg |
| Type of machine: | 270 D - 500 - 90 |
| Year: | 1988 |
| Delivery time: | Immediately |
| Terms of Delivery: | Ex Works |
| Location: | Awans - Belgium |
| Controlversion: | Dialogica |
| Screen text: | |
| Operating hours: | Hrs |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 500 kN |
| Mould opening force, max.: | 31,1 |
| Size of mould platens (h x v): | 400 x 400 mm |
| Distance between tie bars (h x v): | 270 x 270 mm |
| Mould opening stroke: | 325 mm |
| Mould height min.: | 225 mm |
| Max daylight: | 550 mm |
| Hydraulic ejector - stroke: | 125 |
| Ejector force forward/backward: | 31,4 Kn |
| Injection unit | |
|---|---|
| Screw diameter: | 25 mm |
| Ls/D ratio: | 18 |
| Injection pressure: | 1860 bar |
| Stroke volume: | 49 ccm |
| Shot weight, PS: | 41 g |
| Injection rate: | 86 ccm/s |
| Injection stroke: | 100 mm |
| Screw speed: | 5201/min |
| Nozzle pressure: | 60 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 11kW |
| Installed heating capacity: | 3,46 kW |
| Reservoir capacity: | 190 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 3,7 m x 1,75 m x m |
| Total machine weight: | 1800 kg |
| Accessories | |
|---|---|
| - - Anti vibration pads |
| Additional information | |
|---|---|
| - - - -fold Waterbattery |

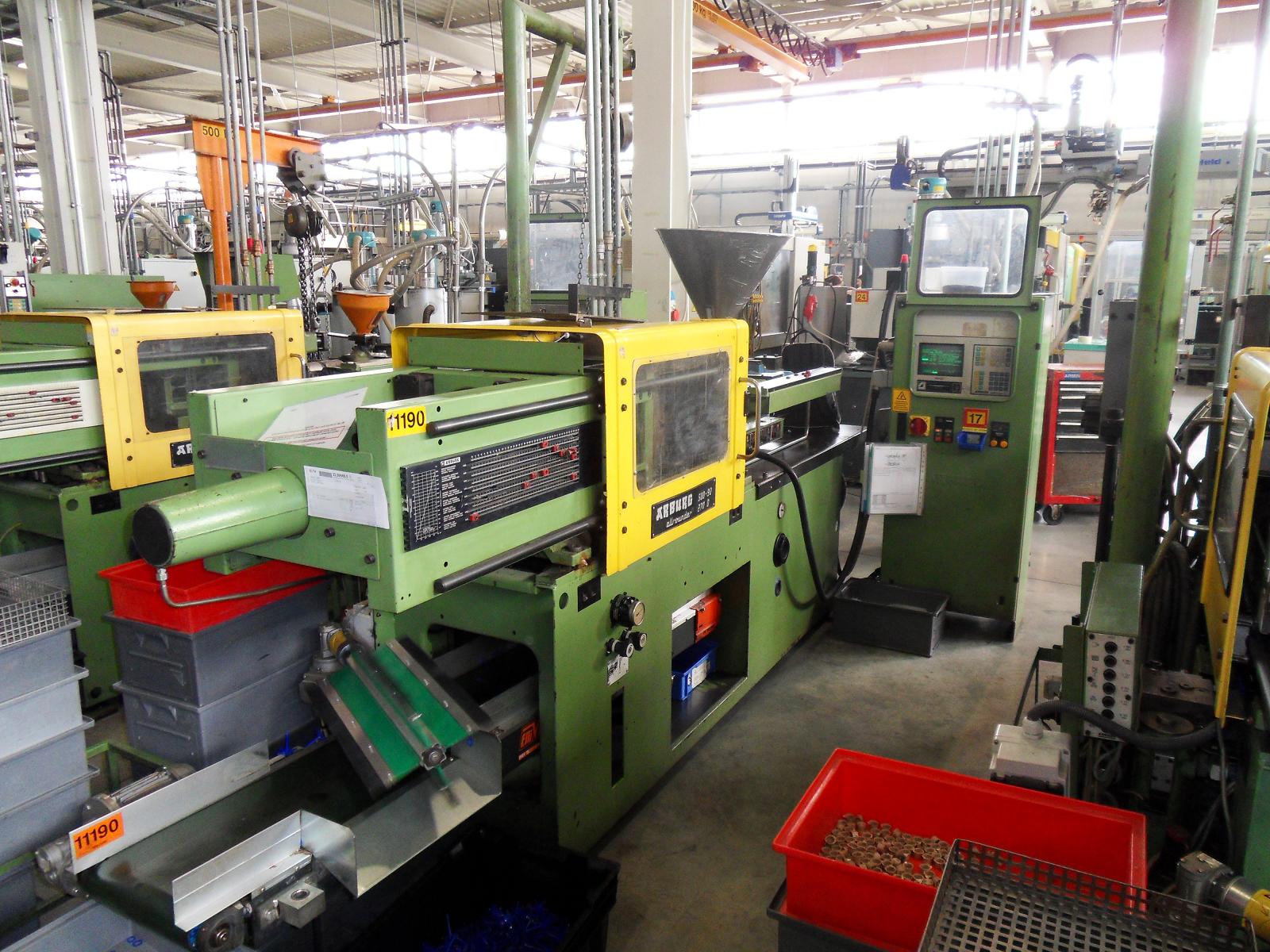

| Picture |
|---|
