Arburg 270 - 210 - 500
| Details |
| Manufacturer: | Arburg |
| Type of machine: | 270 - 210 - 500 |
| Year: | 1984 |
| Delivery time: | Immediately |
| Terms of Delivery: | Ex Works |
| Location: | Awans - Belgium |

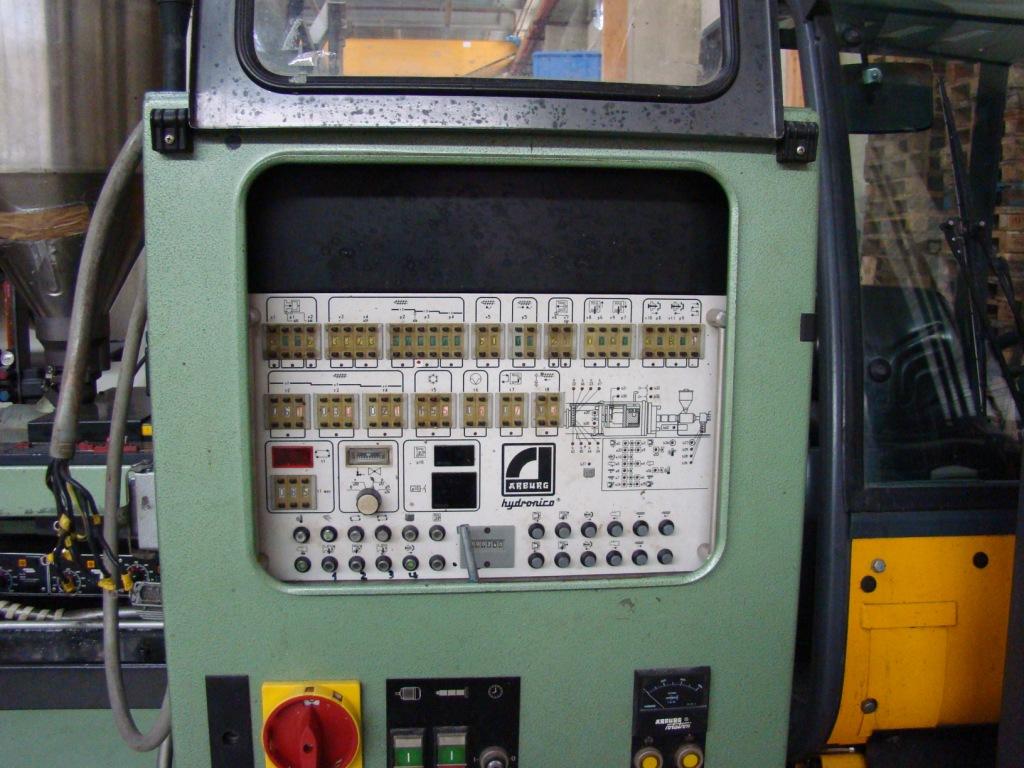

| Controlversion: | Hydronica |
| Screen text: | -- |
| Operating hours: | 48.586 Hrs |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 500 kN |
| Mould opening force, max.: | 31/100 kN |
| Size of mould platens (h x v): | 400 mm x 400 mm |
| Distance between tie bars (h x v): | 270 mm x 270 mm |
| Mould opening stroke: | 325 mm |
| Mould height min.: | 225 mm |
| Max daylight: | 560 mm |
| Hydraulic ejector - stroke: | 125 mm |
| Ejector force forward/backward: | 31 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 40 mm |
| Ls/D ratio: | 15 |
| Injection pressure: | 1150 bar |
| Stroke volume: | 182 ccm |
| Shot weight, PS: | 154 g |
| Injection rate: | ccm/s |
| Injection stroke: | 145 mm |
| Screw speed: | 10 - 570 1/min |
| Nozzle pressure: | 72 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 15 kW |
| Installed heating capacity: | 5,56 kW |
| Reservoir capacity: | 250 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 4,1 m x 1,3 m x 1,50 m |
| Total machine weight: | 1.850 kg |
| Accessories | |
|---|---|
| - Hopper - Anti vibration pads |
| Additional information | |
|---|---|
| - - - 6 fold Waterbattery |
| Picture |
|---|
