Arburg 220 - 75 - 250
| Details |
| Manufacturer: | Arburg |
| Type of machine: | 220 - 75 - 250 |
| Year: | 1988 |
| Delivery time: | Immediately |
| Terms of Delivery: | Ex Works |
| Location: | Awans - Belgium |
| Controlversion: | Hydronica |
| Screen text: | |
| Operating hours: | 37.008 Hrs |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 250 kN |
| Mould opening force, max.: | 19/83 kN |
| Size of mould platens (h x v): | 346 mm x 346 mm |
| Distance between tie bars (h x v): | 221 mm x 221 mm |
| Mould opening stroke: | 275 mm |
| Mould height min.: | 200 mm |
| Max daylight: | 475 mm |
| Hydraulic ejector - stroke: | 100 mm |
| Ejector force forward/backward: | 17 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 22 mm |
| Ls/D ratio: | 20 |
| Injection pressure: | 2020 bar |
| Stroke volume: | 38 ccm |
| Shot weight, PS: | 32 g |
| Injection rate: | 39 ccm/s |
| Injection stroke: | 100 mm |
| Screw speed: | 400 1/min |
| Nozzle pressure: | 50 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | 7,5 kW |
| Installed heating capacity: | 3,46 kW |
| Reservoir capacity: | 150 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | 3,23 m x 0,97 m x 1,60 m |
| Total machine weight: | 1.500 kg |
| Accessories | |
|---|---|
| - Anti vibration pads |
| Additional information | |
|---|---|
| -Waterbattery |

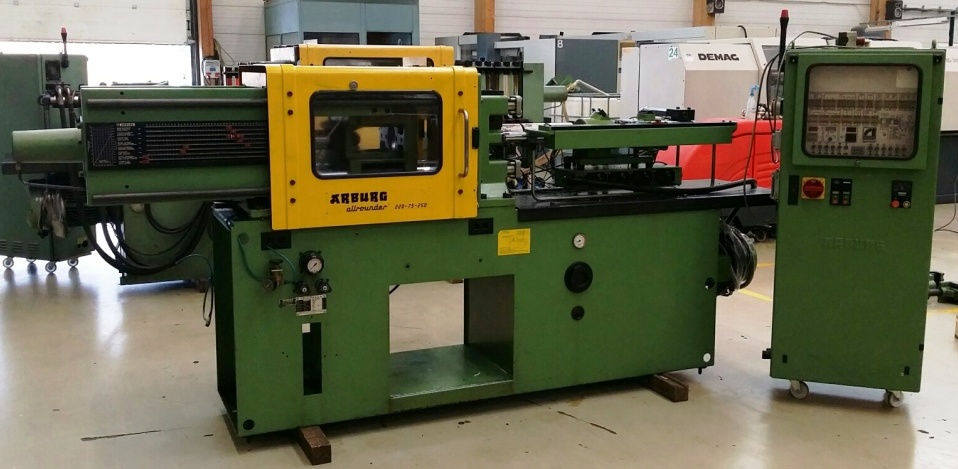

| Picture |
|---|
