Battenfeld BA 350 / 70 Plus
| Details |
| Manufacturer: | Battenfeld |
| Type of machine: | BA 350 / 70 Plus |
| Year: | 1996 |
| Delivery time: | Immediately |
| Terms of Delivery: | Ex Works |
| Location: | Awans - Belgium |
| Controlversion: | Unilog 1020 |
| Screen text: | --- |
| Operating Hours | 8196 Hrs. |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 350 kN |
| Size of mould platens (h x v): | 470 mm x 280 mm |
| Distance between tie bars (h x v): | 270 mm |
| Mould opening stroke: | 200 mm |
| Mould height min.: | 150 mm |
| Mould height max.: | 250 mm |
| Max daylight: | 450 mm |
| Hydraulic ejector - stroke: | 100 mm |
| Ejector force forward/backward: | 26,2 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 25 mm |
| Ls/D ratio: | 14 |
| Injection pressure: | 1575 bar |
| Stroke volume: | 49 ccm |
| Shot weight, PS: | 44,6 g |
| Injection stroke: | 100 mm |
| Screw speed: | 400 1/min |
| Plasticising rate max.: | 12 g/s |
| Nozzle pressure: | 35 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Installed heating capacity: | 2,76kW |
| Adjustable barrel heating zones: | 2 |
| Pump power | 7,5 Kw |
| Oil | 125 L |
|
|
|
|---|---|
| Dimensions und weights | |
| Total machine weight: | 1.000 kg |
| Dimensions ( L x B x H ) | 2,25 x 0,86 x 1,50 m |
| Accessories | |
|---|---|
| - Anti vibration pads - Hopper |
| Additional information | |
|---|---|
| - - 4-fold Waterbattery |

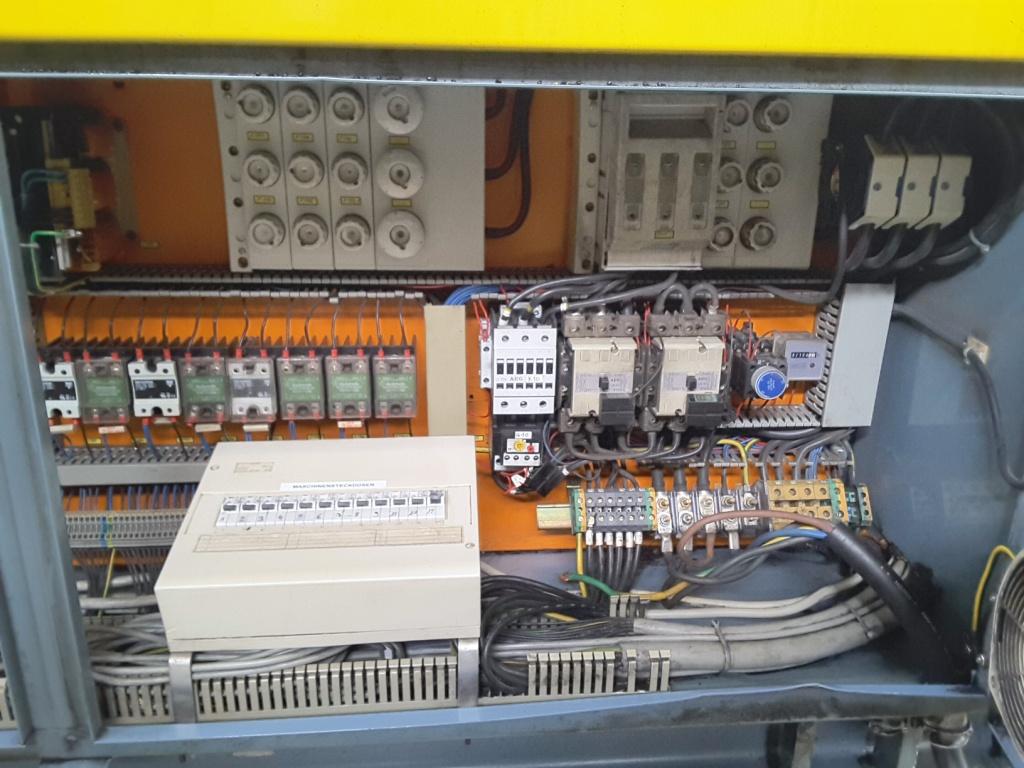

| Picture |
|---|
